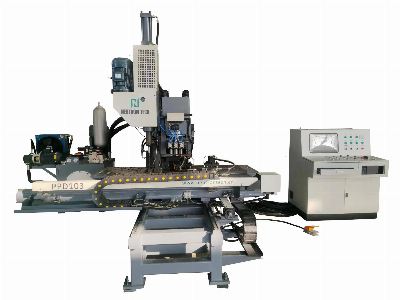

CNC Hydraulic Plate Drilling, Punching and Marking Machine Plate Processing Machine

Product parameters1.Max. punching force:1000kN2.Max. size of workpiece: 775×1500mm3.Thickness of workpiece:5 ~ 25mm4.Max. punching diameter :  φ25.5mm(16Mn,20mm thickness Q235, 25mm thickness)(we only provide the die of 16mm thickness for test run. If you want the die  of 20mm,25mm thickness for test run,  you must provide the female die yourself) 5.No. of die station:   3(one of them can be equipped with stamping die)6.Min. distance between hole and plate edge          Punching:    25mmDrilling:     the distance depends on the hole diameter 7.Max. marking force:               800kN8.No. and size of character:           10 (14×10mm)9.Drilling diameter (high-speed steel twist drill): φ16 ~ φ50mm10.Rotation speed of drilling spindle (stepless speed variation):120~560r/min,    5.5kW11.Max. stroke of drilling spindle:      180mm12.Feeding speed (hydraulic stepless adjustment) 20~200mm/min13.The processing precision:It can fit the stipulations of first-rate products in < The Classifying Standard of Steel Tower of the Transmit Electricity Line >. The specific numerical value:14.The space between arbitrary holes on the joint plate: longitudinal: ±0.5mm transverse :  ±0.5mm15.Node plate: space between any two group holes : ±1.0mm, the space of the hole to the side of the steel plate: ±1.0mm16.The vertical degree, "t" is the thickness of plate ≤ 0.03t and ≤ 2mm17.Motor power of hydraulic pump: 15kW18.Power of servo motor (X and Y axes):  2×2kW19.The compressed air force ×discharging quantity: 0.5MPa×0.1m3/min20.Overall dimension  (length × width ×height):  3100×2988×2720mm21.weight :Approx.6500kg22.The motor of X and Y axes are world famous brand AC servo motor. The main electric controlling components (PLC and CNC orientation system, encoder and switch without touching), hydraulic components, pneumatic valve (electromagnetic valve, overflow valve, and unloading valve) and cylinder are all world famous brand.23.Working environment:Working temperature: 0ºC~ 40ºCPower: Three phase four wire systemAC Voltage: 380VFluctuation of voltage: ±10%Frequency: 50 HzProduct detailsOther productsCertificationsCompany informationShandong neutron tech intelligent equipment co. LTDLocated in jinan lixia district, is a new trading company.Mainly engaged in intelligent equipment and related accessories development, sales, installation, maintenance and import and export business.Its products are widely used in iron tower, steel structure, automobile and other fields, customer groups throughout the world more than 40 countries.The company has experienced sales staff, technical support and after-sales team, to provide customers with quality, accurate products and professional, efficient service.Factory workshopPackaging & ShippingFAQQ: What is your advantage?A:We offer will be reasonable, but always keep in high qualityQ: If i want cheaper quality, can you produce for me?A: Yes, you can send us your quality details, we will do that as your request and calculate the price.Q: If i order big quantity, what's the good price?A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Price Term, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
