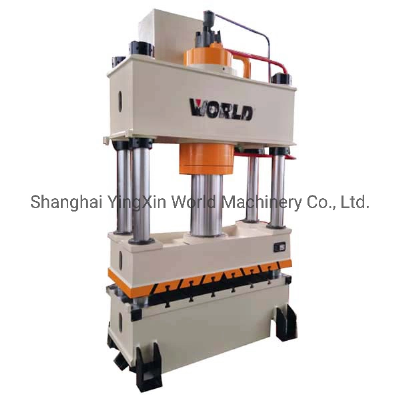

hydraulic press for metal stamping or hot forgingFeatures: 1) Computer optimized design, 3-beam, 4-column structure, simple but with high performance price ratio. 2) Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points. 3) Independent electrical control, reliable, audio-visual and convenient for maintenance. 4) Centralized button control system,with adjustment and semi-auto operation modes at operator's choice. 5) Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions. 6) The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements. Specifications MODELYW32-100YW32-160YW32-200YW32-315YW32-400CapacitykN10001600200031504000Ejecting ForcekN400400400500630Return ForcekN200320360630750Slide Strokemm600700700800800Ejecting Strokemm200250250300300Max. Shut Heightmm9001000110013001500Slide SpeedIdle Strokemm/s120120120100100Pressingmm/s1111118-128-12Returnmm/s1101101108080Ejecting SpeedEjectmm/s6060606060Returnmm/s1001001008080Bolster SizeLRmm72072072012602000FBmm58058058012001500Main Motor PowerkW7.511152222MODELYW32-500CYW32-500DYW32-630AYW32-630BYW32-800CapacitykN50005000630063008000Ejecting ForcekN10001000200020002500Return ForcekN12501250125012501500Slide Strokemm120080010009001200Ejecting Strokemm350300400300350Max. Shut Heightmm15001500160015001800Slide SpeedIdle Strokemm/s200220200200200Pressingmm/s8-208-207-206-156-15Returnmm/s100120150150120Ejecting SpeedEjectmm/s6080806060Returnmm/s100100100100100Bolster SizeLRmm28002700280022003000FBmm18001400180015002200Main Motor PowerkW4444604490 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
