Retorts Sterilizer/ Retort Technology in Food Processing/ Retort Machine

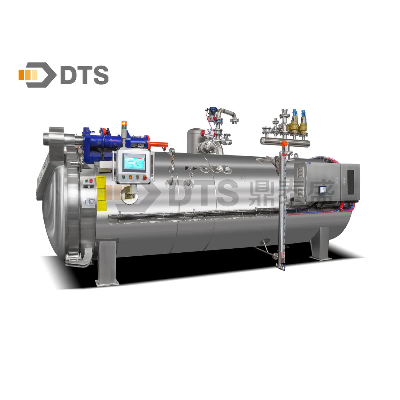

Automatic Steam Air Mixture Retort  Retort Sterilizer for Canned Food, Pouches, Flexible ContainersProduct Description- Retort is designed and constructed strictly in accordance with the provisions ofthe GB/T150-2011 Standard for the Manufacture of Steel Pressure Vessels. - The equipment complies with FDA/USDA standard requirements (FDA21CFR113 and 21CFR11)- ASME, DOSH, MOM certificate are also available.- Steam Air Retort is fitted with Fan Motor and Air Tunnel compared with traditional steam retort.- The circulation of steam is forced by a powerful fan inside the retort which makes travelling steam horizontally and evenly to guarantee a perfect temperature homogeneity and temperature distribution.Technical Specification  ModelDTS-H1204Vessel Inner Diameter in mm1200Vessel Useful Length in mm3600Vessel Thickness in mm 5Main Material of Retort VesselSUS304MediumSteam, Air, WaterInstalled Power380V, 50Hz, 13kwDesign Working Temperature147ºCMaximum Working Pressure0.35 MpaBasket Qty. Per Batch4Retort General DimensionsL4920 W2220 H2800 mmRetort Unloaded Weight2200 kgsControlPLC, HMI, Automatic ControlApplicationsCans, retort pouches, flexible containers packages etc.Auxiliary Prepared by Customer SiteBoiler, Air Compressor, Cooling TowerWhy DTS?DTS CertificatesDTS is committed to quality management and continuous improvement. ASME, CE (PED), MOM, DOSH, KEA, CSA, CRN , GOST , etc.. These certificates are based on continuous improvement in customer satisfaction and our processes.    Regulatory certifications :  DTS Retorts can be designed and fabricated in accordance with the mandatory regulations of each country based on our know-how, therefore, DTS Retorts are installed in more than 30 courntries around the world.Training& Customer Care ServiceWe provide training in our factory and at customers' site, general maintenance, troubleshooting, our experienced technicians will provide training for your Retort operators, so that they can immerdiately put the theory into practice.Packages& DeliveryPackages: naked, where necessaryProject Case Show  Company Information  DTS is the most influential supplier of Retorts in the food and beverage industry in Asia. Our goal is to become the top international brand in canned food sterilization industry. We have highly experienced and talent mechanical engineers, design engineers and electrical software development engineers.  DTS is committed to providing customers with the best quality equipment. We understand the importance of technical support and customers' needs after sale. We can quickly respond to our customers and solve the problems while providing them with strong pre-sales, sale and after-sale services. This is why DTS can firmly occupy the largest share of Chinese market, and continue to grow in Asia and develop internationally.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
