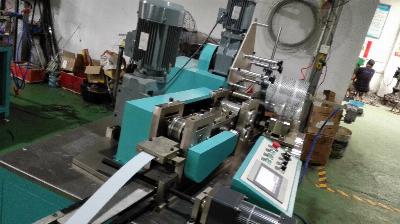

Automatic Metal Expanding & Spiral Mesh Tubing Machine

Automatic Metal Expanding & Mesh Tubing MachineModel: HRMT-90/500-EX/MTGeneral introduction:Steel belt of 54mm width fed in, processed by squeezing, expanding, edge folding, spiral seaming, mesh tube made out.This machine is designed and made for making HDAF, to increase efficiency, and to save material.Meanwhile, to improve working environment.It is easy adjustable by 2 factors only: table Angle, two motor speedTouch screen setting, PLC regulating, simple to operate.By changing seaming roller curve, the mesh tube can be made outside or inside smooth according to the tubes for inner or outer side assembling.Automatic Metal Expanding & Spiral Mesh Tubing MachineSpecifications As Follows:Mesh tube range:100~450mmMaterial steel belt width fed in:54mmMaterial steel belt width:0.4~0.6mmEfficiency:15~30M/Min.Electric Inlet:380V/50HZ/3PH (unless customed)Total power:4.5KWCompressed air:0.6MPaWeight:900 KGOut Dims.:165cm*110cm*160cm (L*W*H)Application: For making heavy duty air filter mesh tubes.Details As Follows:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
