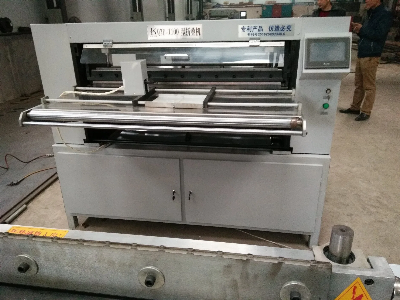

Automatic Knife Pleating Machine for Medical Curtain

Automatic Knife Pleating Machine for Medical CurtainWe manufacture automatic knife pleating machine.It is controlled by PLC system.Blade/knife pleating machine has been designed for production of parallel type pleats on media such as polyester filter paper (for dust filter), wooden pulp filter paper (for car/truck/industrial air/oil/fuel filter), glass fiber paper (for HEPA filters) , various types of stainless steel and other wire meshes combination of layers of fabric (for air filter), blinds, etc. Different media require the machine have different accessories and design, so the media need to be specified when customer orders the machine.  The standard model is available in working widths of 800, 1000, 1500, 2000, 2400, or 3000mm and can undertake pleating in any pleat depth from 10-55mm, 50-105mm or 100-150mm, You need choose the width and pleat depth before you place order.Automatic Knife Pleating Machine Technical parameterMax width3000mmAdjustable pleat height range5-55mm 55-105mmPleating speed0-200pleats/min  steplessPower voltage380v/50HZ   220V/50HZPower1.1KWWarm-up power3KWTemperature: rangeroom termperature to 200Working pressure0.6MPaControllPLCSalient Features:PLC Controlled128 set memory of pre set values of different functions in auto modeCentralized lubrication systemPleat Depth can be programmed through PLCAutomatic Pleat depth adjustmentPID temperature controller for pre & post heatersPleat counterBatch/pack counterTouch Screen displayPneumatic pleat marker systemPneumatic counter pressure systemPneumatic Heater liftingPleated Material for Pleating machinePaper,Fiberglass Mesh,PP Mesh,Stainless Steel Wire Mesh,Steel Mesh,Non woven mesh      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
