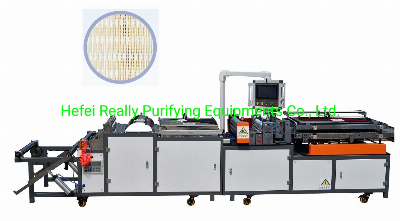

Automatic Filter Paper Rotary Pleating Machine

Full Automatic Rotary Pleating MachineModel: HRGT-800Main equipment included:1, Auto paper roll loading, constant tension paper feeding2, Pneumatic Knives slit paper into accurate width3, Vapor generator, pre-heating, Paper pleats settle heating4, Paper pressing/drawing/pleat collecting/conveying5, Auto pleat counting & marking6, PLC regulating/touch screen /PID temperature controlTechnical data:1, Speed: 80M/Min.2, Paper Width: 700MM3, Pleating Height:24-70MM4, Heat setting: ≤260°C5, Pre-heating: ≤200°C6, Vaporing: ≤100°C7, Power: 29.8KW/380V/50HZ8, Weight: 1350KGS9, Dim: 500*150*170(CM)10, Compressed air needed:0.6MPaFeatures:1, Automatic loads paper roll, pneumatic tension shaft fix paper roll, constant tension feeds paper, auto-stop at lack of paper2, Pneumatic slitting knives accurately positioned along beam ruler, assures paper slitting width accuracy3, When change pleating roller kits for different pleating height, just select the correct data on touch screen by confirming, all mechanical units are automatically driven to their correct positions, and them automatically locked, safe, reliable, effective gathering showed here. Pleating roller kit conveyed by auto-rising wheels, loaded by a special supplied vehicle, new roller kits auto-fixed by cylinders, one person can easily do all the works, time and human saving !4, Vaporing, pre-heating, pleats set heating units are all strengthen than normal other makes5, Suspension roller shaft press imprint lines on the filter paper and draw it, No Damage to paper, maximize filter quality6, PID temperature control system, assures ±3°C accuracy7, Vaporing/pre-heating/pleats-setting pneumatic driven8, Automatic count pleats numbers, mark at the set pleat No. Marking line length adjustable by setting time on touch screen9, Machine structures are strengthened extraApplications:Suitable for Heavy-Duty-Air-Filter (HDAF) outer element paper pleatingRemarks:Accept customize, the maximum width of filter paper can be 1000MM  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
