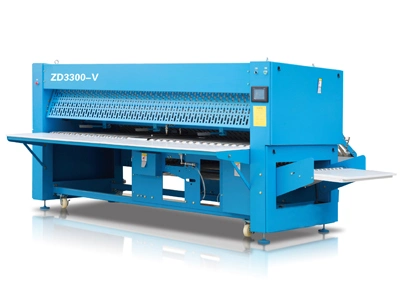

Industrial Laundry Sheet Folding Machine 3300mm / Automatic Folder

Product description:1.Newly developed ZD-3000V Automatic laundry bedsheets folding machine, an essential option for flat work ironer where automatic folding application is necessary.Precision folding capability,auto sheet width series andHuayi's advanced intelligent control system makes the equipment simple to operate and yet flexible in application.Equipped with user friendly MHI and operating program software.2.Reliable micro-processor-based control system with touch screen display panel.3.Two sets of independent motor drive systems each with VFD controller,folding speed of 50m/min.Total of five folds with two primary folds and three cross folds.Maximum width of 3000×3000mm.4.Self diagnostic fault alarm systems with display,safety operation control features,easy trouble shooting and daily maintenance.5.Anti-static control feature improves operational efficiency and stability.Technical parameters:ModelZD3000-VZD3300-VCapacity(kg)2555Maximum folding width(mm)30003300Maximum folds times/tayer5/325/32Max Folding speed(m)5050Rated voltage(VZHz)AC380/50AC380/50Motor power(KW)1.31.3Air inter pipe¢(inch)G1/2"G1/2"Min compressed air pressure(MPa)6.56.5Air consumption(L/mm)500500L×W×H(mm)4200×2800×17604416×2800×1760Machine Weight(kg)16001650  ShangHai HuaYi Washing Machine Manufacture co.,Ltd ,Main Products/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
