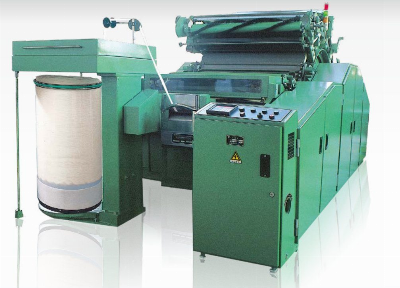

Textile Machine A186g Carding Machine

A-186G Modle JINGWEI Brand Hot Sale Textile machinery Sliver MakingFor Cotton and Cashmere Wool Carding Machine 24h Online Customer ServiceProduct DescriptionMain Features:1. Patent three stripper rollers device2. Additive licker-in carding segment3. Attached three front stationary flats and two rear ones4. Doffer braked in short time5. New mode of monolithic electromagnetic clutch6. Latest model coiler7. Enclosed cover at right and left sides8. High quality card metalic clothing Specifications of A186G Carding MachineApplicationUsed for processing cotton and man-made fibers or blends, fed with lap.Sliver count(g/m):3.5~6.5Production(kg/h):30Delivery speed(m/min):120Working width(mm):1000Attached carding segmentA group of licker-in carding segment;Two rear stationary flats;Three front stationary with lap.Total draft: 67~120Licker-in dia.(mm): φ250Licker-in speed (r/min):     Cotton 1070   Man-made fiber 980Cylinder dia.(mm):φ1289Cylinder speed(r/min):       Cotton360 Man-made fiber 330Doffer dia.(mm):φ706Doffer speed (r/min):21.3~38.2Number of flats (working/total):40/106Flats speed (mm/min):     Cotton 177 214 266;Man-made fiber 81 98 122 Can size (dia. * Height) (mm):φ600*900;φ600*1100Suction:Three suction points-triangular space between doffer and cylinder, licker-in cover and under-card lattice.Air volume (continuously) (m3/h):1300Air Pressure (Pa):500~600Motor (kw): Total installed power4.46; Main motor3.3; Doffer-driving motor1.1(Inver is optional); Blower motor0.06Space requirement (L*W)(mm):3809*2902Machine weight (kg):About 4300/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
