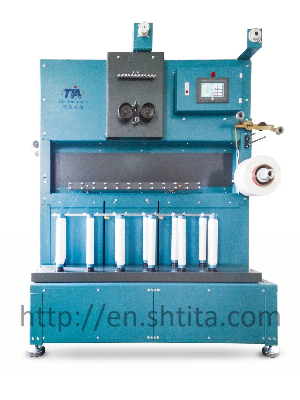

Spinning Production Line - Mother Yarn Splitting Machine for POY FDY Yarn

Usage:This machine is used to split mother yarn of polyester and nylon yarn into one or several strands of mono-filaments, especially available for mass production of various mono-filaments, such as superfine and static, etc.Features:1. One side with 12 or 16 spindles; two sides with 24 or 32 spindles.2. Not only available for FDY, but also for DTY.3. Either side (R and L) of the machine can operate indepently in differnet conditions.Technical data:ItemTechnical DataSplitting mother yarnMax: 22kgPET or PA6 YarnSplitting quantity for each one side could be up to 16 monofilamentsFinal Denier/ Filament15D/1F or 30D/2F;                                            20D/1F or 40D/2F.Splitting tension8~15g/f, automatic tension settingSplitting speedPET (200D/10F) standard: 1000m/minShaping deviceMax length 460mm, min 100mm, vertically windingTotal installed power2.1KWOverall size1800*850*1930mm (L*W*H)Net weight800KG/setCompany info:TITA is a professional chemical fiber engineering company focusing on scientific research, technology innovation, chemical fiber yarn machinery manufacturing and contracting, we are specialized in improving the production processes of civil and industrial filaments of polyester, nylon, polypropylene, etc, civil staple, bi-component composite micro yarns in shapes of fragment, sea-island, sheath-core and side-by-side, and spun non-woven, as well as in developing new products and software, equipment design and manufacturing building planning and turn-key projects, etc. We are committed to providing customers with our best quality machinery and services, and constantly to innovating and improving them to meet the increasing requirements and trends in the future, also we seek worldwide cooperation in hope making more outstanding success in the filed of chemical fiber machinery. Major business: 1) Engineering design and turn-key project for POY and FDY by PET, PA6, PP, etc. 2) Spinning machines for industrial yarn, bi-component composite yarn and melt spandex yarn3) Mother yarn splitting, Monofilament machines4) BCF machine5) Compact pilot spinning machine6) Conversion for existing lines, modification for winders and spare parts supply, etc.Our services:Before-sales service:1. We will provide machine specifications based on your requirement.2. You are warmly welcome to visit our factory.After-sales service:1. Our technical team will support you with installation, testing, adjustment and training.2. We guarantee machine quality for one year. During this year, if spare parts of the machine we damaged,we can send the components to you.3. If you have any question about operation when using our machine, we will support you within 24 hours.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
