Digital Non-Woven/Fabric Hydrostatic Head Tester Testing Equipment Price Yg812D

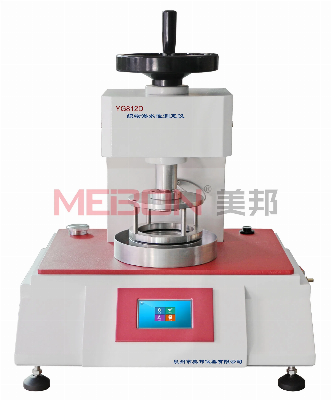

Hydrostatic Head Tester YG812DApplication      Hydrostatic Head Tester, used for determining the resistance of fabrics (canvas, coated fabrics, cover cloth, rainproof clothing fabrics, and geotextile materials) and films to water penetration under pressure while firmly clamped in the test rig of standard area.   For special medical protective clothing compression-folding (Schildknecht) flex cracking resistance testing, this hydrostatic head tester is also capable of doing extra tests when it fails the flex cracking resistance test, which defined in standards like EN 14126 - 2003, EN14325, EN ISO 7854.         Specification    The variable test method can be selected, test time and variable pressure increasing rate can be set and saved.      Wide range of pressure increasing rate and freely adjustable. Pressure increasing system is adjusted by the dynamic feedback to prevent overload.   Real-time test results are shown on the colorful touch panel.   Test results can be made up to a report on software and print out directly.         5 test methods are included   Pressure raising mode, Constant-pressure mode, Constant pressure & fixed time mode, Extending-relaxing mode, Water penetration, and leakage mode.   Equipped with a LED lamp to observe the test process clearly.       Pressure Range  0 ~ 50kPa (5 m water column).   0 ~ 200kPa (20 m water column).       0~ 500kPa (50 m water column).           Increasing rate of water pressure                1 ~ 100kPa/min stepless adjustable            Units                                                              Pa, kPa, mmHg, cmH2O, mmH2O,Bar,PSI  Standarad Test Head   100cm2 (7.8cm2Optional)Standards    Medical Masks and Protective Clothing: EN 14126 - 2003, EN14325, EN ISO 7854           AATCC 127, ISO 811/1420A, EN 20811,GB/T 4744     Weight50 kgPower220/110 V50/60 HzDimensionsWidth:600 mmLength:420 mmHeight:700 mmOperation interfaceAbout usOur workshopProduction ProcessCertificate/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
