300m Width Web Aligner System for Mask Making Machine

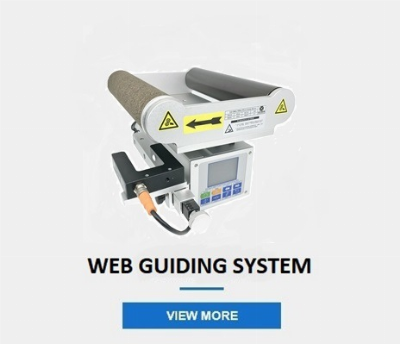

Product DescriptionPG-300A Offset Pivot Guide SystemAll-in-one web guide control system PG Series :Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.Web guide system Product Features:1. Brushless DC servo motor driving, maintenance free;2. Accuracy ball screw bar and accuracy positioning;3. With large guiding travel;4. Roller length and width can be custom made;5. Roller surface treatment can be anodized, rubber and cork leather;6. Manual or air fixture of the cutting station is optional.PG-300AWeb guide system Specification:Power supplyDC24V~45V, stand 36VCPU Processor32-bit CPU main Frequency>72MRectification AlgorithmNo Overshot Integral Variable PI AlgorithmAnalog input3 channel 0~6V, impedance 20KSensor voltageDC12V ,350mA MaxResponse time0.5msAnalog input resolution12 bit ADCSwitch contacts input3 channel NPNWeb control modeEPC, LPC, CPC, SPCSupport the sensor typeUltrasonic sensors, photo sensor, CCD sensorActuator speed14mm/s~40mm/s can adjustActuator thrust100Kgf/200Kgf/400Kgf/800KgfESD protectiveIEC1000-4-2,±15KV(Air),±8KV(Contact)Screen display2.8″,260K colors TFTMotor driveBrushless DC servo motor to driveLevels of protectionIp53DrawingModel   No.Roller Length L (mm)Roller Dia. D(mm)Roller Width C  (mm)Slide Block Height B (mm)Base Length Y (mm)Web Guide range (degree°)Max.   Tension (N)PG-200A2005023025260±17300PG-250A2505023025260±17300PG-300A3006026025310±17300PG-350A3506026025360±17300PG-400A4006032035410±17500PG-450A4506032035460±17500PG-500A5006032035510±17500PG-600A6006032035610±17500Features1. Brushless servo motor drive, maintenance-free2. Precision ball screw, accurate positioning3. The guiding stroke is large4. Can be customized guide roller length and span5. The guide roller can be optionally equipped with a hard anodized coating, rubber layer, wrap cork.6. Can add the splicing table & clip based on customers' needs,see below picture. The web guiding system refers to the technical operation adopted by the manufacturer to keep the sides of the coil neat and consistent during spraying, printing, punching, laminating, slitting or other coil winding processes. It is widely used. It has brought great benefits to the industry. Correction control has led to the emergence of industries such as steel, corrugated paper, textile, printing, labeling, labeling, paper, plastic film, building materials, cables, rubber, tires, and non-woven corrugated paper processing. Automatic control.Application Order DetailsItem NamePG-300A Offset Pivot GuideMOQ(Minimum Order Quantity)1pcLead time3-5 days after receiving the depositCalculated Packing Size50cm*45cm*36cmPackageWooden BoxPrice TermEXW,FOB, CIF, etcPayment termTT, L/C,Western UnionCountry of OriginChina  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
