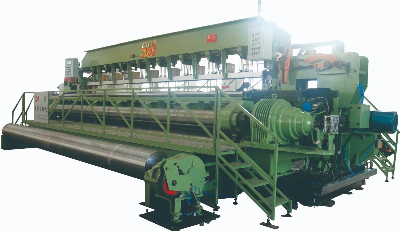

Cxwt Special Screen Loom

This is a super-heavy loom designed for weaving special web, especially for thick and heavy press web, filter sieve, desulfurized and heavy environmental protection screen etc. Technical Parameters1,Range of Polyester monofilament: 0.2~1.2mm2,Weft Density: 40~150 picks/10cm3,Reed Width: 6300mm-7500mm. 4,Economic Loom Speed: 40-45rpm.5,Power r: About 50Kw. 6,Weight: Approx. 40~60T. Main Constructions1,Framework: The main wallboard adopts iron box structure; The machine installed on the overall base.2,Main driven: Adopting bilateral motor two-sided coaxial drive.3,Shedding Mechanism: Adopting bilateral broad knife blade side-drawing dobby device, 10 heald frames. 4,Weft Insertion mechanism: Servo motor drive, rapier weft insertion. 2 weft selection.5,Beating Up Mechanism: Adopting multi-fissions crank four-linkage weft beating. Crankshaft has variable speed device drive.6,Take Up Mechanism: Adopting servo motor control three-roller positive take-up.7,Let-off Mechanism: Adopting servo motor control positive let-off.8,Web-rolling Mechanism: Independent external central fabric rolling system.9,Lubrication system: Automatic grease lubrication and manual lubrication.10,Controlling System: With PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
