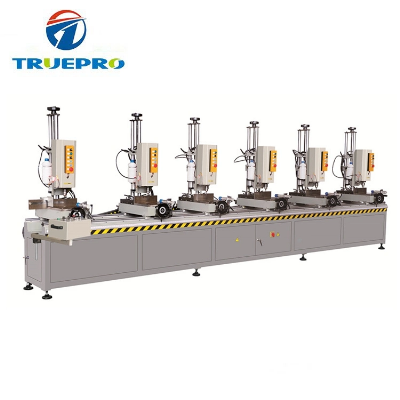

Aluminium Window Door Production Equipment Multi Head Drilling Machine

Aluminium window door production equipment multi head drilling machineMachine feature:1. Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume- produce. 2. The processing Max. profile section size is 250*250mm, and the max. processing length is 5000mm. 3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement. 4. Feeding system adopts hydraulic-damping cylinder, which ensures a smooth feeding. 5. Imported Schneider PLC control system with steady capability. Parameter:ModelCLZZ6A-13Power supply380V 50HzInput power6*0.75kwAir pressure0.5~0.8MpaPower unit quality6Max drilling hole diameter13mmMax distance between two drilling holes5000mmMin distance between two drilling holes300mmMax section size250*250mmDrilling head feeding travel125mmWorktable size300*300mmOverall dimension5500*1100*1800mmMachine details:Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you. We believe that  "IT'S THE BEST THAT FITS MOST."Every machine could be customized to meet your special requirement. 1. When can we arrange shippment?We usually arrange shippment within 15 days after getting deopsit,but customized machines should be more than 25 days.2.What you can do if my machines have problems?1) We can send you free components to you if your machines are in guarantee time.2) We can dispatch our engineers to repair your machines3.Do you provide equipment operation training?A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.All of our engineers have passport.4. If I make Aluminum window and door, how many basic machines do i need?1).double head cutting saw 2).Lock hole copy milling machine3).End milling machine4).Automatic Corner connector automatic cutting saw5).Single head Corner combining machine  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
