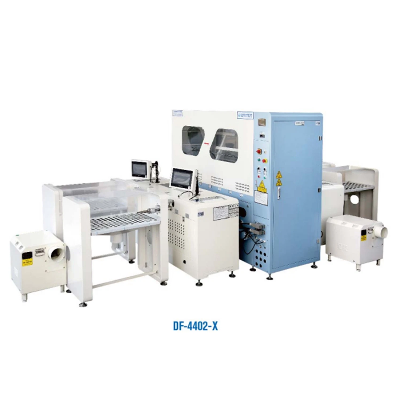

Artificial Synthetic Goose Duck Down Garment Parka Filling Machine

Feature1) High efficient & labour saving: 2-3 times faster than manual work, one worker can support 2-3 assembly lines.2) Accurate quantitative precision: non-contact weighing method, Dynamic weighing error ±0.01g.3) Capable forlarge and small lattice panels: 0.2-20g4) Healthy & environment-friendly: Dust-removal system & recycle down5) Patented design of down outlet: easy for airtight fabrics &special soft fabrics.6) Friendly touch screen: data storage, data revision, on-time insight.7) Fully automatic & No need skilled labor.8) Running in a high automatization and intellectualization,no pollution SpecificationItem No.DF-4402-XDimension2050*5750*2100mmWeighing Ability0.2-20gShowing Accuracy0.01gVoltage220vPower2.5kwWorking Efficency8g/sMaterial ApplicatonDown 50upDescription1. 3rd Generation machine , with 1 pipe supported by 4 weighing systems.2.  Accuracy filling, tolerance within 2%, Could filling like 0.26g, 0.76g, 3.21g,3. Wide measure, the range of weighing can set 0.2-20 grams once to suit for filling both separate grids and normal grids. 4. Excellent for extra slim Chamber, make out Perfect garment, very even. 5. Wide application for different types of down. Such as 50, 60, 70, 80, 90 down   6. Intelligent Management and control (Optional)   Original data document can be imported into relevnt programs,thus alleviating the burden of manual input.   Filling data can be sunchronously transferred to computer.Statements and such filling information as output can be directly inquired.and remote management can also be realized.Produce ProcessImport MaterialsUsing motor to import down and feather to storage box.Filling material:duck down, duck feather,goose down,goose feather,milkweed velvet,ball fiber,fake down and etc.Set up Target WeightSet up target weight in programm,filling range isg-g,the max filling weight of home textile filling machine is 80g/fillingStart PreparedPress the button "automatic",filling machine can be ready state automaticallyStep the pedal to fillPut the fabric piece to the filling port and hold it in right way,then step pedal,the target weight down is filled into the fabric piece.filling in this way,it can fill 1800 grids/hour/port  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
