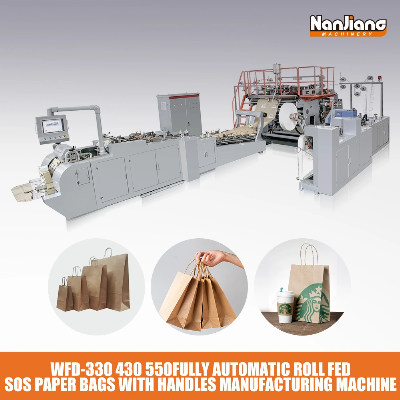

Roll Fed Paper Bag with Online Twisted & Flat Handle Machine

Production Description This is special machine for the production of shopping bags (block bottom bags) with twisted rope handle or flat belt handle made of paper. Whole machine is controlled by Germany SIMENS computer central control system with touch screen and SIMENS servo motor for cut-off length control.It can produce variable sizes paper bag. Machine could pasting paper handle inline for compeletly paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line, this machine is an idea equipment for Twist &Flat handle square bottom paper bag.  Technical Parameter   Machine ModelWFD-430WFD-550Paper Roll Width630-1250mm630-1350mmPaper Bag Width220-450 mm220-550 mm(160-450 mm)(190-550 mm)Paper Tube Length270-520mm330-620mm(270-600 mm)(330-750 mm)Bag Bottom Width80-200 mm80-280 mmPaper Thickness80-150g/m²(70-150g/m²)100-150g/m²(80-150g/m²)Max. Roll material DiameterФ1200mmФ1200mmMaterial Core DiameterФ76mmФ76mmLength of Twisted Rope (customizable)300-400 mm300-400 mmLength of Twisted RopeФ4-Ф6mmФ4-Ф6mmHandle Patch Length190 mm190 mmHandle Patch Width35-50 mm35-50 mmHandle Patch Roll DiameterФ1000mmФ1000mmPaper Patch Roll Width70-100 mm70-100 mmPaper GSM for Handle Patch110-250g/m²110-250g/m²Speed70-110Bags/min.70-110Bags/min.Total Power33KW42KWMachine Weight19000KG23000KGMachine Dimension (L*W*H)16000 x 4800 x 2600 mm16500 x 5000 x 2600 mm Packaging & ShippingMoisture-proof and shock-proof packaging + Steel frame + ContainerThe machine is firmly fixed on the bottom of steel frame.Comparing with wooden case packing,this kind of packing way can greatly protect machine from deformation.Our Services1 After-sales Service Provided:Engineers available to service machinery overseas 2 Warranty:Guarantee for one years; Lifelong maintenanceExhibitionCertificationsFAQQ: Are you manufacturer or trading company?A: We are the manufacturer and have our own workers and factories. Q: Where is your factory located? May I have a visit?A: First of all,warmly welcome!We have two factories.One is located in Wuxi city, Jiangsu province,another is located in XuYi county,Huaian city.Our Wuxi factory is very close to Shanghai city. Q: Do you have machines in stock to sell?A: No, we produce according to customers' requirements. Q: How is the quality of your machine?A: We are in this industry for about 20 years and regard quality as the life of the     enterprise.We choose the world famous manufacturers as our suppliers.And     besides,we have our own quality inspector.Machine parts are checked one by one    according to the drawings! Good quality and good after-sales help us obtain good    reputation in the international market! We have a technical team of seven person and    at the same time cooperate with other Research Institutes.    We are committed to providing customers with the best packaging machine. Q: What information should I let you know if I want to get a quotation?A: First, Paper raw material:  Reel paper or Sheet Paper.     Second, sizes of the paper bag, thickness of paper.     Send sample bag picture if available.    Then we will recommend the right machine to you! Q: Do you have related machine working VIDEO?A: Yes,contact me please!Professional Paper Bag Machinery Manufacturer,To provide you with the Quality machine, Sound service and most reasonable price is our PROMISE./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
