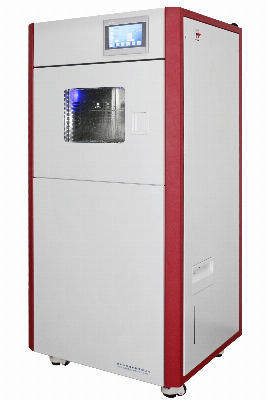

Fabric Water-Vapour Transmission Tester for Protective Clothing Machine Yg216r

Fabric Water-vapour Transmission Tester For Protective Clothing ApplicationWater vapor permeability-the time rate of water vapor transmission through unit area of flat material of unit thickness  inducedby unit vapor pressure difference between two specific surfaces, under specified temperature and humidity conditions.Fabric Water-vapour Transmission Tester To test the water vapour transmision of various fabric (moisture permeable fabric included) and non-woven fabric such as bat wool, space cotton, sportswear fabric etc.SpecificationModelYG216-IYG216RWater tank No8pcs/layer Testing methodUpright cup methodUpright cup method,Flume method  Water tank temperatureRT~30ºC     (Resolution0.1ºC)  Test chamber temperatureRT~50ºC     (Resolution0.1ºC)   Accuracy of temperature±0.5ºCHumidity of testing chamber  40%RH~95%RH  (Resolution0.1%RH)Accuracy of humidity±1%RHTesting time0.1~999.9h Speed of circulating air0.1~0.8m/sOperation interfaceColor touch screenBreathable area 2826mm² (∮60mm GB12704) or 4534mm² (∮76mm ASTM E96)Or 5408mm² (∮83mm BS 7209) or 2826mm² (∮60mm JIS L1099)  Standards    GB/T12704, GB/T21655, ASTM E90, ASTM E96, JIS L1099, BS 7209  Weight200 kgPower220/110 V50/60 HzDimensionsWidth:750 mmLength:720 mmHeight:1560 mmOperation interfaceSoak CupAbout usOur workshopProduction ProcessCertificate/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
