Balanced Bottom Loading Arm with Emergency Break Away Coupling

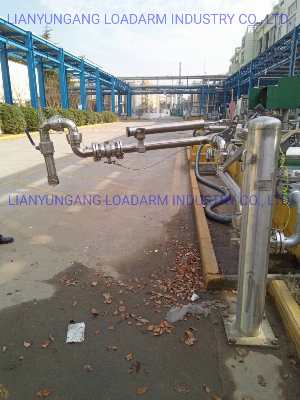

The structure land loading arm:LDCO's land loading arm on site:LDCO's land loading arm in the workshop:  General introduction for land loading arm:Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc. Basic technical data for AL1412: AL1412 is a typical of closed loading arms. It can be easily operated, installed and maintained and has good vapor recovery ratio.Places AppliedClosed top loadingApplicationsProduct oil, chemicals, especially for highly volatile and toxic liquidsNominal DiameterDN50~DN150 (liquid), DN25~DN100(gas)Working Temperature-196~250ºCWorking PressurePN1.0~PN4.0Material of pipelineCarbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.OVERSEAS PROJECT CASES:   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
