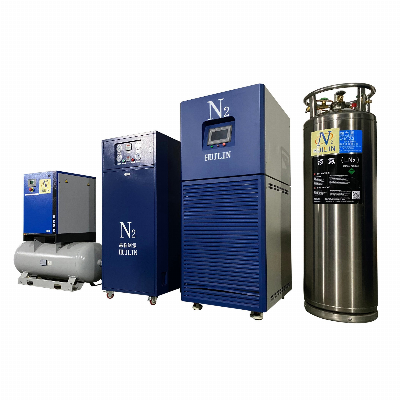

Small Liquid Nitrogen Generator Quickly Produce Ln

Features:1. The machine runs automatically and nobody is on duty.2. Less land occupation, low height (maximum Height≤2500mm)3. Quick speed of liquid nitrogen output: It only takes 1.5 hours from start-up to liquid nitrogen output.4. Mature technology ,Safe and reliable operation and easy maintenance. With ordinary refrigerator compressors on the market, people who can repair refrigerators will ba able to repair it.5.No downtime maintenance, no defrostingNitrogen Liquefier Working principleThe cryogenic mixed refrigerant throttle refrigerator is adopted in this nitrogen liquefier. It is based on the regenerative multi-component mixed refrigerant throttle refrigeration cycle. The high, middle and low boiling point pure components are selected to compose multi-component mixed refrigerants. The relay matching of effective refrigeration temperature zones of each boiling point component is realized. It can be cooled from ambient temperature to -196 ° C, the purpose of nitrogen liquefaction (-180 ° C @ 0.6 MPa) is achieved.Features:1. The machine runs automatically and nobody is on duty.2. Less land occupation, low height (maximum Height≤2500mm)3. Quick speed of liquid nitrogen output: It only takes 1.5 hours from start-up to liquid nitrogen output.4. Mature technology ,Safe and reliable operation and easy maintenance. With ordinary refrigerator compressors on the market, people who can repair refrigerators will ba able to repair it.Figure 1. Flow diagram for nitrogen liquefier from HUILINHUILIN Nitrogen Liquefier Specification ModelWG-STD-05LWG-STD-1LWG-STD-3LWG-STD-5LWG-STD-10LWG-STD-20LWG-STD-25LWG-STD-30LWG-STD-40LWG-STD-50LL.Nitrogen Output(L/day)12248012024050036072010001200L.Nitrogen Output(L/h)0.5135102025304050Power(KW)1589112525253535N2 consumption(Nm3/h)≥1≥1.5≥4≥6≥12≥30≥35≥40≥50≥60N2 Purity99.9%99.9%99.9%99.9%99.9%99.9%99.9%99.9%99.9%99.9%Cooling formAirAirAirAirWaterWaterWaterWaterWaterWater_Cooling water consumption(Ton/h)----≥4≥8≥8≥8≥15≥15Dimensions(mm)850×950×19601500×1000×20002500×1500×2000   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
