3.2 Ton Hydraulic Crane Lifting Steel on Truck

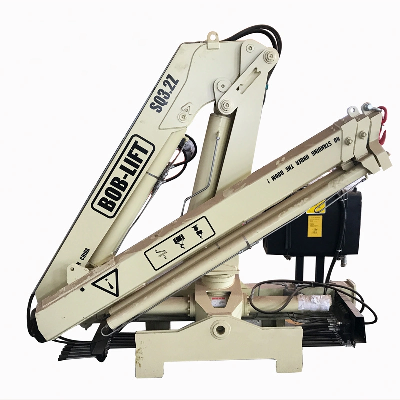

This is SQ3.2ZA2 knuckle boom truck mounted crane.The following are detailed informationParameters:   SQ3.2ZA2  3.2 ton truck mounted craneMax Lifting CapacityTon3.2Max Lifting MomentTon.m6.8Recommend PowerKW14Hydraulic System FlowL/min25Hydraulic System PressureMPa26Oil Tank CapacityL60Installation Spacemm850Self Weightkg1250Rotation Angle°400Technical Drawing:Advantages:1.Using three dimensional design and analysis of product design ensuring safe andreliable2. Four bar linkage mechanism has been applied in the joint partswhich improves the working capacity at the maximum elevating angle3.Boom head is made of whole-arm structuremoreintense.Split head design reduces the boom head bearing4.Flange plate balance valve and compulsorsequenceBOB-LIFTvalve make the movement more accurate and reliable.5.Hexagon boom structure strengthens the loading capacity6.Float type triple bridge desiqn applies in the crane pedestal, making the force arrangement of the chassis more scientific.7.Hydraulic winch in hoisting mechanism relies on disc spring and friction brake,stable andreliablehigh efficiencylow noiseheatis small: descentrelies on hydraulic balanceweightsgreatlyincreasing product reliability.8.Boom using the large slide designreduce craneboom's pressure ratio while reducing the lifting arm wear.Real photos:Certificate and service:1 year warrantyOur customers are from all around the world:Products producing process:Ingenious casting of high-quality products, responsibility to create the futureOur company:F&Q1) How many years of your factory?We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.2) Which kind of payment you can be accepted?Normally both of T/T & L/C at sight are ok for us.3) How about the delivery time?20-40 working days after received 30% T/T or L/C.4) What's your warranty?Normally is 1 year, if large quantities we can negotiate.5) What's your MOQ?MOQ: 1 set6) Can you accept OEM service?Yes for sure my friend.7) Optional Attachment?Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
