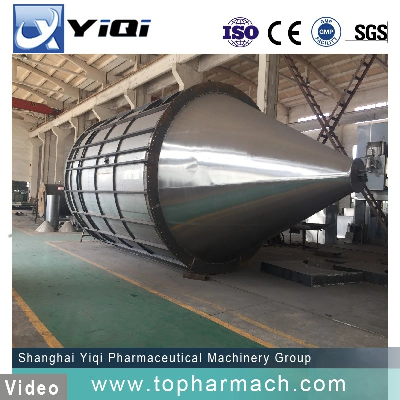

LPG Pharmaceutical Drying Equipment Chemical Atomizer Centrifugal Spray Dryer Machine

  APPLICATION GMP Standard. Steel Material:  SUS316Spray Dryers are relatively simple in operation which accept feed in fluid state and convert it into a dried particulate form by spraying the fluid into a hot drying medium. Food atomization is done using high pressure nozzle, high pressure air, two fluid nozzles or centrifugal disc atomiser. The heating of drying air can be of either steam coils or thermic fluid or air heater according to the service conditions available. The hot air is distributed into the chamber from top by an air dispenser. The final product is taken out from the spray dryer along with air to a cyclone separator for fines separation and the final powder gets collected at the bottom. Additional systems like fines recycling into the chamber for agglomeration, powder cooling, conveying, storage & bagging can also be supplied. Application of the spraying dryer: Milk PowderCeramic SlurryMolassesEnzymesCalcium ChlorideHerbal ExtractsIce Cream Mix PowderWhey PowderPolyvinyl AcetatePoly Aluminum ChlorideEffluent ConcentratesInstant CoffeeBakers YeastFruit Juice PowderEgg PowderDyesInstant TeaMagnesium ChlorideUF ResinProtein HydrolysatesCatalystsInstant Chicory etc  Product Parameters itemparameterspecLPG Series 52550100150200-2000inlet temperature140-350 automatically controlledoutlet temerature~80-90Max.water evaporation capacity52550100150200-2000centrifugal spraying nozzle transmission modecompressed air transmissionMechanical transmissionRotation speed rpm25000180001800018000150008000-15000sprayingdesc diameter mm50100120140150180-340Heat supplyElectricityElectricity+steamElectricity+steam,fuel oil and gasSettled by users themselvesMax.Electric heating power kw936638199 overall dimensions m1.8×0.93×2.23×2.7×4.263.7×3.2×5.14.6×4.2×65.5×4.5×7Depends on the concrete conditionsDried powder restoring tate %≥95≥95≥95≥95≥95≥95Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for referenceThis drying equipment  also could work with mixing machine, blender, automatic powder, doypack packing, weighing & filling & sealing & capping & labeling packaging machine to form a production line. Welcome to check with us for more infomation. Detailed Photos We also provide automatic weighing filling dosing dispenser / small sachet packing machine, with reasonable price. Welcome to check with us.        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
