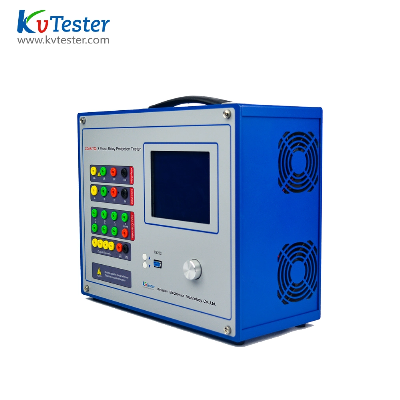

3 Phase Secondary Injection Test Set Relay Protection Tester Unit

ZCAR-702 Protection Relay Test is operated by the convenient and flexible rotation mouse through the large LCD screen and all English display. It can complete the most testing work, including all sorts of relay and miccomputer protection test, and can simulate all kinds of complicated instantaneity, permanent, transform failure for the test.  Product Features1.The standard output of 4 phases of voltage and 3 phases of current   2.The stand-alone operation is convenient   3.Dual operation model, connect computer for work 4.Strong function of software   5.The amount of switch quantity contacts is rich   6.Large LCD screen   7.Self-protection  8.Independent DC power output   9.Cost-effective    Product Parameters   Secondary Injection 3-Phase relay test set price Microprocessor Three Phase Protection Relay TesterAlternating current outputOutput accuracy0.5 magnitudePhase current output (effective value)0~40AThree parallel phase current output (effective value)0~120APhase current value with long time under permission (effective value)10APhase current maximum power output400VAThree parallel phase current maximum power output1000VAThree parallel phase current maximum work time10sFrequency range (base wave)20~1000HzHarmonic frequency number1~20 timeDirect current outputOutput accuracy0.5magnitudeCurrent output0~±10A/each phase, 0~±30A/every three parallelMaximum output of load voltage20VAlternating current outputOutput accuracy0.5 magnitudePhase voltage output (RMS)0~120VLine voltage output (RMS)0~240VPhase voltage/line voltage power output80VA/100VAFrequency range (base wave)20~1000HzHarmonic frequency number1~20 timesDirect voltage outputOutput accuracy0.5 magnitudePhase voltage output amplitude0~+160VLine voltage output amplitude0~+320VPhase voltage/line voltage power output70VA/140VAThe switch quantity and time measurementSwitch parameters input (7ways)Empty contact: 1~20mA, 24vPower contact access: "0": 0~+6V; "1": +11V~+250VSwitch parameters output (2couples)DC: 220V/0.2AAC: 220V/0.5ATime measurementMeasuring range: 0.1ms~9999sMeasuring accuracy: 0.1msVolume and weightAppearance and size400mm×300mm×180mmWeight of a single machine22kgWorking environmentSupply powerAC 220V±10%,50/60HzEnvironmental temperature-10ºC~+50ºC Equipment Accessories List  Accesories ListUnitQuantityHost Set1Special test linesSet1PC control software CDpcs1Special USB serial portpcs2Aluminum alloy boxes pcs1User Manualpcs1Quality test reportpcs1Certificate of Originpcs1Fusepcssome  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
