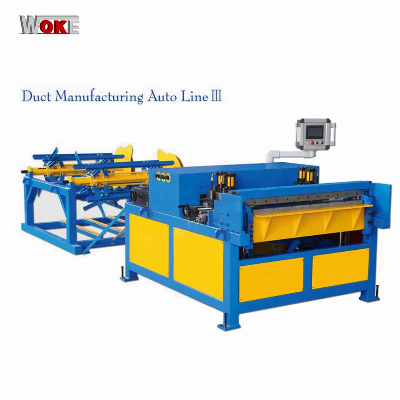

Sheet Metal Auto Duct Production Line 3 III

AUTO DUCT LINE 3 PERFORMANCE                                                                    Auto Duct Line 3 consists of a decoiler, leveling & grooving rollers, hydraulic notching & punching machine, hydraulic shearer and hydraulic folder. The electrical control system uses a computer with a closed-loop servo-system to increase the precision and reliability of the line. TECHNICAL SHEETS                                                                                                 ModelWKAL-1300WKAL-1600Thickness(mm)0.5-1.20.5-1.2Max. width(mm)13001600Max. working speed(m/min)1616Coiler weight(kg)80008000Power(kw)9.59.5Machine weight(kg)50005000Main body dimension(mm)2300x1800x14002300x2200x1400Rack frame dimension(mm)2300x1700x16502300x1700x1650VoltageCustomizedCustomizedFEATURES                                                                                                 A: Two power metal feeding framsB: One leveling & grooving roller machineC: Four hydraulic notch and die, 60HRC, 42CrMo raw materialD: Hydraulic shearer and folder machineE: Industrial PLC control and special software of SIEMENS, MITSUBISHI.WORKING SCHEMATIC DIAGRAM                                                            TDF FLANGE FORMING PROCESS                                                 TDC FLANGE FORMING PROCESS                                                            FINAL PRODUCTS                                                                                      2 IN 1 DECOILER GOING WITH THE MACHINE                                         QUALITY MOTOR AND ELECTRICS                                      NOTCHING, CUTTING & SHEARING                                                         FINAL DUCTING RESULTS                                                                        FAQ                                                                                                            1. Can you make relevant certificate?Yes, we can make for you most of certificates including Certificates of Origin; SABER; and other export documents.2. How can we guarantee quality?We guarantee our machine features are the same as the offers. In warranty time or not, our company will resolve all customer issues to everyone's satisfaction.3.How you reinforce the products in container?Please don't worry about safe and secure delivery of products, we cover the products with plastic film to prevent moisture, and use double steel rope to reinforce.4. How about the shipping costs?Please tell us destination port name, we provide shipping by seafreight, train, air.5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Russian/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
