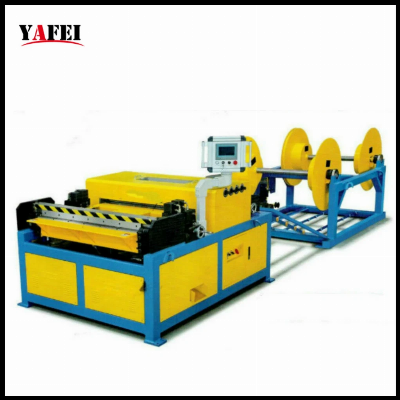

HAVC Air Duct Manufacturing Machine for Square Tube Making

Ventilation Duct Production Line/Havc Duct Forming Machine1.Performance Features:1. The linear structure of machine makes processing smoothly and occupies a small space.2. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.3. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.4. The locating system is very accurate with servo feeding mechanism, especially when processing square-shaped pipes.5. It's equipped with 10 inch LCD touch screen and optional dual keyboard mode to keep operation stable.6. It requires at least one person to operate and each shift can output 600-2000.7. With production memory functions, the production orders can be tracked and checked. Function:It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 600-2000 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding. Main import Configuration:1  MITSUBISHI HMI Display And PLC2  MITSUBISHI Frequency Converter3  Japan NEMICON Inverter4  Taiwan Hydromax Pump5  Taiwan High Temperature Resistant Tubing Basic Configuration:  1. Two electric coil cradles, 4 material trays (5-7t each roll) 2. One rack 3. One host (line 2 host) 4. One mechanical arm clutching, locating and transferring platform 5. One displacement type locking machine 6. One duplex TDF flange forming machine 7. One duplex angle steel flange forming machine 8. One servo feeding platform 9. One hydraulic folding machine 10. One set of computer controlling systemTechnical details:ModelPlatethickness (mm)Platewidth(mm)Max-workingspeed(m/min)Coilerweight (kg)Weight (kg)Dimension(mm)YFJC-II0.5-1.21300166000x224004800x2160x1450160026004800x2460x1450YFJC-III0.5-1.21300166000x230005000x21600x1450160033005000x2460x1450YFJC-IV0.5-1.21300166000x4750012000x3500x13001600800012000x3800x1300YFJC-V0.5-1.21300166000x4950018000x3500x130016001000018000x3800x13002.Process Flow: Uncoiling-Straightening and Beading-Holes punching for supporting bracket (Optional)-Notching-Pittsburgh lock former-Duplex right-angle flange former-- Duplex TDF flange former-Folding3.Mahcine show3.Packaging & DeliveryPackaging Details:film plastic package 20GP container for steel duct forming machineDelivery Detail:Shipped in 25 days after payment4.Contact    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
