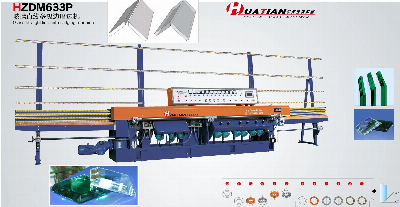

9 Spindles Automatic Glass Straight Line Edging Machine

(1).The base,beams,uprights and motor carriages are made of enhance high quality cast iron,for rigid and reliable processing.(2).The transmission system is adopted of mechanical stepless reducer,double spiral speed reducer,as well as sleeve-type chain of automatic gear.(3).The movement of front beam and grinding spindles are adopted of lead screw driving,and slider are adopted for supporting and positioning.(4).Front-and rear pressure pads are adopted of high-intersity plastic material.(5). Rack is made of aluminum spacers.(6).Inlet conveyor equipped with adjustable device for the height of conveyor.(7)Input and output conveyor adopt timing belt which can improve the transmission precision(8).Stainless steel water tank; stainless steel polishing tank with electrical agitator.(9).automatic Lubricating oil pumplubricating oil to all the parts in beams and sliders.Technical Specifications:maximum grinding3mmGrinding speeding500~2500m/minChamfer Angle 0° ~ 45°Thickness of processed glass3 ~25mmSize of processed glass Max: 3000 x 3000mm Min: 100 x 100mmTotal power26KWWeight4000 KGMachine dimension:7700(L) x 1200(W) x2500(H)mm Delta PLC with touch screen for control system.The Screen can show glass thickness, length, angle and other parameters,can work in both manual mode and automatic mode.some grinding wheels made in Italy;Use high precision low vibration motor;machine equipped a automatic lubrication pumps, which lubricate the conveyor system;Input and output conveyor adopt timing belt which can improve the transmission precision.Inlet conveyor equipped with a device for adjusting the height of conveyor,for which is able to control the desired value of glass feeding. Racks are made of aluminum spacers.The transmission system is adopted of mechanical stepless reducer,double spiral speed reducer,as well as sleeve-type chain of automatic gear.Use high precision low vibration motor.CE certificationExhibitionour workplace  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
