PVC Floor Tile Production Machine/ Spc Vinyl Floor Production Line

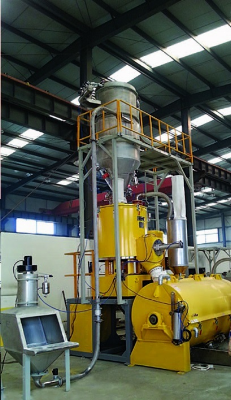

SPC Floor Production line1. recycled machine  1set2. mixing equipment  1 set   (1)hot and cold mixer 1000/3000 1set   (2)vacuum loader  1set   (3) unloading container 1set  (4)screw loader for extruder  1set3.Spc Flooring sheet extrusion line  1set  (1)conical Twin screw extruder  (2) T-Die ( W 970MM , T 4-8mm)  (3)suppprt frame for T-Die  (4)four roller calender  (5)lamination device   (6)roller temperature controller (7)cooling bracket (8)trimming blade(9)trimming blade(10)haul off(11)shear cutter(12)auto stackerproduction Process.1)First compound the material according to the formula, then the compounded material will be   transported to the extruder, after the extruder, there is a T dies mould which is pretty important and will decide the shape of the pvc floor. After T-dies there is a three rollers calendaring machine and it can laminate the printing layer, wearing layer and base layer. The whole process is simple.2) Raw material and formula.No.Itemsunits/KgRemark1PVC100 2CaCO3300300 mesh3Edge material/Recycle50 4Ca-Zn Stabilizer5 5PVC lubricant ZB-60 or ZB-740.8 6PE wax0.6 7CPE anti-impact modify agent(135-A)5 8ACR modify agent  ACR ZB-20 ZB-13 9PVC lubricant agent ZB-175 ZB-1011 10Carbon black0.5Pigment 3) Utility and cost.Power:75KW.Labors:6~7 skilled workers every lineCompressed air:5kwWater recycle system:5m*5m*2m water pool changed every three monthPrice:(4mm base layer, printing layer, wearing layer 0.7mm)Cost:Base layer:19.91 yuan/m2Printing layer and wearing layer:1.1 yuan/m2Others:2.1yuan/m2Total cost :22.6 yuan/m2Capacity:21.6ton/2700m2 per day (24 hours)CONTACT USDipping Industries (Shanghai) Co ltdTel+86 21 37709072   +86 13671812250Websitedipping-industries.en.made-in-china.comContactsMr.Low & Ms.RebeccaAddressRm.746, No.39, Alley1500, Meijiabang Road, Songjiang Shanghai, 201620, China
