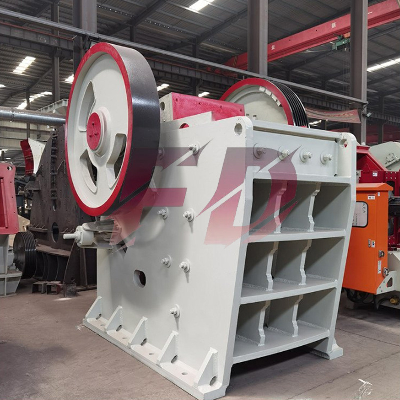

There are two commonly used jaw crushers: double toggle and single toggle. The former is also known as a simple swinging jaw crusher, as the moving jaw only swings in a simple circular arc during operation; The latter moves up and down while swinging in an arc. The jaw crusher is mainly used as a coarse crusher and a medium crusher in mining, building materials, infrastructure and other departments. According to the width of the feeding port, it can be divided into three types: large, medium, and small. Large machines have a feeding port width greater than 600MM, medium machines have a feeding port width between 300-600MM, and small machines have a feeding port width less than 300MM. The jaw crusher has a simple structure, easy manufacturing, and reliable operation. The working mode of the jaw crusher is a driven extrusion type, and its working principle is: the electric motor drives the belt and pulley, and through the eccentric shaft, the movable jaw moves up and down. When the movable jaw rises, the angle between the elbow plate and the movable forehead increases, thereby pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is crushed or chopped to achieve the purpose of crushing; When the moving jaw descends, the angle between the elbow plate and the moving jaw decreases. Under the action of the pull rod and spring, the moving jaw plate leaves the fixed jaw plate, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the electric motor, the crusher performs periodic motion to crush and discharge materials, achieving mass production.The jaw crusher is used in mineral processing, building materials, silicate, and chemical industries. It can crush metal ores such as gold, silver, copper, lead, zinc, nickel, iron, tin, as well as stones, rocks, granite, limestone, barite, quartz, graphite, feldspar, fluorite, etc. Reasonable structureThe internal structure of the equipment is precise, and each component is made of wear-resistant and compressive materials to enhance the usability and wear resistance of the components.Broken cavity depthThe crushing chamber is deep and has no dead zone, with a high crushing ratio and uniform crushing, which improves the feeding capacity and output.Simple operationThe jaw crusher is equipped with a wedge discharge adjustment device, and the adjustment of the discharge port is simpler, safer, and faster, saving time and effort in operation.Low maintenance rateThe replacement of the components of the jaw crusher is convenient, with a small maintenance workload and a large adjustment range, which increases the flexibility of the equipment.Product parametersProduct modelPE-600*900PE-900*1060PE-900*120PE-1000*1200PE-1200*1500Feed particle size500mm685mm750mm850mm1020mmParticle size after crushing60-160mm230-290mm95-165mm195-265mm150-300mmMotor power55-75kw110kw110kw110kw160kwTotal weight17000kg33000kg52000kg55000kg100900kgThe manufacturer produces a complete set of equipment and parts, which can be customized according to needs.Jaw crusher, abbreviated as Jaw Crusher, has the characteristics of large crushing ratio, uniform product particle size, simple structure, reliable operation, easy maintenance, and economic operating costs. This series of jaw crushers are widely used in various fields such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industry.Various crushing equipment supply can be customized according to needsJaw crusher, abbreviated as Jaw Crusher, has the characteristics of large crushing ratio, uniform product particle size, simple structure, reliable operation, easy maintenance, and economic operating costs. This series of jaw crushers are widely used in various fields such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industry.Partial view of equipment loading and shipping siteFAQ Q:Are you a trading company or a manufacturing factory?A:We are a factory.Q:What is your delivery time?A:If the goods are in stock, it usually takes 7-10 days.If the goods are out of stock, it will take 15 to 30 days, calculated by quantity.Q:What is your payment method?A:30% of the total price should be paid in T/T as the down payment; 70% of the remaining payment should be paid in T/T before delivery.Q:Do you provide technical guidance?A:Yes, we will provide you with professional advice on the selection of models and the operation of equipment. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
