Floor Decking Sheet Making Machine Floor Tile Maker / Metal Machine

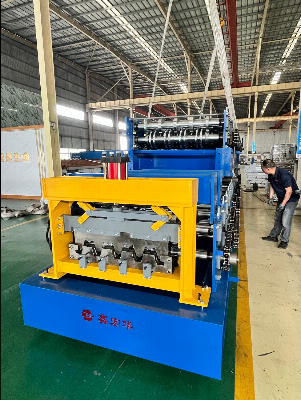

YX51-250-750 Floor deck roll forming machine for sale1. Specifications of the YX51-250-750 floor deck roll forming machine1).Main Techincal Data:1.Model NumberYX51-250-7502.Machine Dimension10000*2300*1600mm3.Weight8500KGS4.Hydraulic Motor Power22KW5.Hydraulic Cutting Power3.75KW6.Material of Principal Axishigh grade 45# fogred steel7.Voltage380V/50HZ/3PH8.Forming Steps18steps9.Processing Speed12-18m/min10.Material Sheet Thickness0.8-1.2mm11.Feeding Material Sheet Width1000mm12.Effective Width750mm±8mm13.Tolerance for Cutting to Length±2mm         14Material of Cutting BladeCr12Mov15Feeding Material SheetQ235-Q345 Galvanized SheetYX51-250-750 Floor Deck Profile Drawings2).Main Accessories:(1).Main Forming Machines(Hydraulic Motor);(2).5 Tons Manual Uncoiler;(3).Hydraulic System;(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching screen, cencorder and frequency changer)(5). Hydraulic Cutting Blade;(6).Tools;(7). Operation Manual;2. Pictures of floor decking forming machine   3. Certifications of Product 4. Applications of ProductXiamen Xinhonghua Machinery Co., Ltd.  Introduction1.Our Company ViewXiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.2.Our advantagea.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people. b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.c.Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.3. Certifications of Our Company   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
