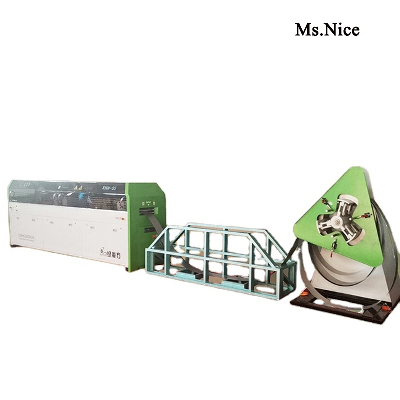

C89 Light Steel Frame Machine for Villa Houses

C89 Light Gauge Steel Frame Forming machine for villa  Product ParametersC89 profile dimension89*38*9mm (post-punching & post-cutting )Machine dimension4000*800*1100mmProduction speed2700m/hour(without punching&cutting)Production Capacity4-5tons/8h(overall speed:including drywall panel, roof truss and floor joist) Machine weight2.5TMain motor power7.5kwRooller and die materialSKD11Feeding width174mmFeeding thickness0.8-1.2mmForming step9 stationsVoltage380V/50HZ 3Phase(as Customer's Request)Drive modegear+sprocketOur Advantages 4,hydraulic system(refrigerater)The machine has a long-term working period in tropical zone and high temperature days. About 70~80% working time of the machine is for punching and cutting which will easily cause the high temperature of the hydraulic oil under a long time high pressure & high frequency working. So the machine should be equipped with refrigeration system or water cooling system.Some machines are equipped with wind cooling system which absolutely cannot meet the requirement of lowering hydraulic system temperature if the environment temperature is higher than 40ºC. Under stable production ability and low failure rate, the machine is able to ensure that the customer can finish their further fabricated orders with high quality  Company ProfileXiamen XinHongHua Machinery Co., LTD., founded in 2000, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability. Has many years engaged in research and development design and manufacturing experience of the team, and has very strong technical force. Our main products are: Al- Mg- Mn-Standing Seam Roofing Forming Machine, Portable Standing Seam Roofing Machine, Straight & Tapered Standing Seam Roofing Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines, Colored Steel Roofing Panel Forming Machine, Tile Roofing Machine, Floor Decking Machine and Highway Rail Forming Machines, etc. near hundred kinds roll forming machines. With " innovation and development, management for efficiency " of the entrepreneurial spirit, and with " let customers satisfied " of the service idea, we have owned a good reputation between many customers. Our products not only have been sell well in the domestic market, but also exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.  ContactAttn: Ms.Nice  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
