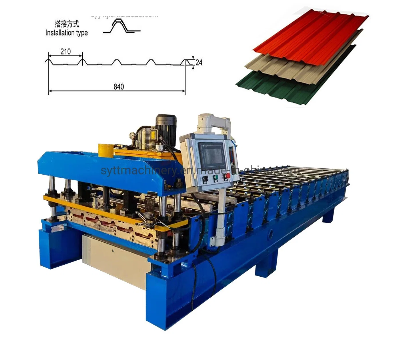

Product DescriptionThis is roof panel sheet roll forming machine ,this roll forming machine is widely used in norways ,material thickness is 0.3-0.6mm ,many customers prefer choosing this type of roll forming machine because of its good quality as well as low price Working flowThe whole line includes 6 parts altogether ,Decoiler --Feeding table --Roll forming machine body--Computer control system --Cutting blade --Finished panel --Run out table Product Parameters NO. Item Specification Material Raw material Galvanized steel coil Material thickness 0.3-0.6mm Machine body Roller stations 11 Shaft material High grade 45# steel Shaft diameter 75mm solid Roller material High grade 45# steel Middle plate thickness 20mm Machine size 6*1.2*1.5m Productivity 8-15m/min Cutter Material CR12 Method Hydraulic cutting Power Driving way Chain 1 inch Motor 4KW Hydraulic oil pump 3KW Voltage 380V,50HZ ,3 PHASE or customize as your need Control system PLC Delta from Taiwan Invertor Delta from Taiwan Screen Touch screen ,Delta Encoder Omron from Japan Language Chinese & English or as your request Decoiler 5T manual Free Receiving table 3m manual Free Detailed Photos Company Profile SANYANGTONGTAI MACHINERY CO.,LTD Botou Sanyangtongtai Machinery Co.,ltd is a leading manufacturer for steel plate coilingmachinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate andload-bearing plate of buildings, and other complementary thin wall cold-bending shaped steelplates,expresswayrailings,colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.CertificationsMain market Our company's products are produced and sold in various places, and exported to Thailand, India, Pakistan, Palestine, Bahrain,Kyrgyzstan, Lebanon, Sri Lanka, Indonesia, Bosnia and Herzegovina, Russia, Croatia, Haiti, Brazil, Argentina, Chile, Algeria,Guinea, Tanzania, New Kas Rydonia, Papua New Guinea, United Kingdom, United States, Canada, Poland and other countriesOur customers FAQQ1. What's your payment terms and delivery time?A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T afteryour inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we willarrange production. About 30-45 days for delivery.Q2. Do you have after-sales support?A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.Q3. Do you sell only standard machines?A3: No, most of our machines are built according to customers specifications, using top brand components.Q4. What will you do if the machine is broken?A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of theequipment.Q5. Can you be responsible for transport?A5: Yes, please tell me the destination port or address. we have rich experience in transporting.Q6. How to visit your company?A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
