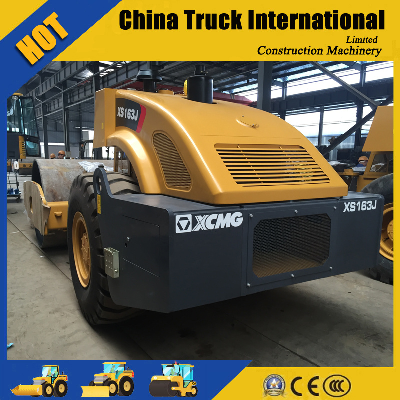

Construction Machinery 16t Single Drum Compactor Xs163j

Construction Machinery 16t Single Drum Compactor Xs163jComfortable drivingROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.Unique structureUnique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.Easy operationAccording to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.The failure diagnosis screen with alarms can avoid any unnecessary downtime.The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.Specification:ModelUnitXS163JOperating weightkg16000Weight on front drumkg7700Static linear pressureN/cm362Speed rangekm/h Speed I 2.54Speed II 4.97Speed III 10.51Theoretical gradeability%30Min. external turning radiusmm6500Steering angle°±33Oscillating angle°±11Vibration frequencyHz28Nominal amplitude (high/low)mm1.9/0.95Excitation force (high/low amplitude)kN290/145Engine model SC8D156.2G2B1Type Water cooled, pressurizedMax. powerkW115kw/1800r/minEngine oil consumptiong/kW.h223Hydraulic oil tank capacityL170Fuel tank capacityL240  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
