Changlin Official Py130h 130HP Multifunction Small Mini Medium Motor Grader

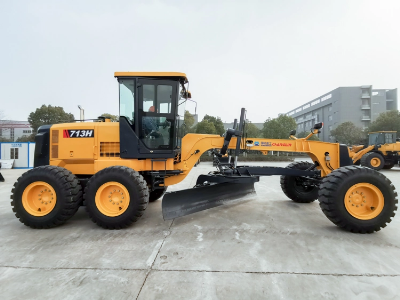

Product DescriptionThe motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.·Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient·Hydraulic lock, auto lock/unlock  differential ensures stability and powerful traction·Ideal axle load allocation provides excellent stability while cutting hard surface·Serviceable, efficient hydraulic system enables every part to be fully used·Box-typed frame and advanced T/M enable it to complete heavy-duty work·A wide working range is accomplished through flexible blade suspension system and articulated frame   Product Parameters Basic specification Engine modelCummins 6BT5.9-C130Rated power97KW@2200rpmDimension(L×W×H)8290×2600×3465(mm)Operating weight(Standard)12000KGPerformance specificationTravelling speed ,forward6.9/10.7/17.3/26/37.8/53.4Travelling speed ,reverse6.9/17.3/37.8Tractive force(f=0.75)61.7KNOperating specificationMax. steering angle of front wheels49°Max. lean angle of front wheels17°Max. oscillation angle of front axle16°Max. oscillation angle of balance box13°Frame articulation angle26°Min. turning radius using articulation6.6mBladeMaximum lift above ground410mmMaximum grading depth560mmMaximum blade position angle90°Blade cutting angle29°~77°Circle reversing rotation360°Moldboard width × height3658×580mm  Company ProfileOur AdvantagesAfter Sales ServicePackaging & ShippingFAQQ1:Are you original manufacturer?A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers with KOMATSU and HYUNDAI in 1990s.Q2: What kind terms of payment can be accepted?A:   L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.Q3: Which incoterms  can we work?A: FOB, CFR, CIF are the usual trade terms.Q4: What about the delivery time?A: 7-30 days after receiving the deposit.Q5: What about the warranty time?A: 12 months after shipment or 2000 working hours, whichever occurs first.Q6: What certificates are available in Machinery?A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.Q7: Do you accept OEM or ODM?A: We can provide OEM or ODM manufacturing service  Accept product customization on special working device, color & brand requirement.Q8: Can you provide online technical services?A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
