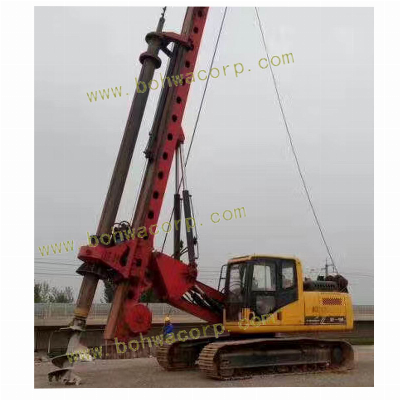

Hydraulic Piling Auger Drilling Machine Piles Driver

Hydraulic Piling Auger Drilling Machine Piles Driver  I. Basic Specification for RDH-260 Auger Drilling MachineBorehole diameter (mm)400-600Maximum reference drilling depth at one time with maximum hole diameter (m)26Φ600  Diameter maximum drilling depth (mm)28Maximum theoretical torque of power head (kN/m)100Power head speed (r/min)14/11Synchronous speed of power head motor (r/min)960Power head motor power (kw)75x2Maximum total tension of main winch  (kN)480Main winch motor power (kw)30Total tension of auxiliary winch (kN)30Auxiliary winch motor power (kw)4.5Maximum torque of chassis rotation (N/m)4800Chassis rotation motor power (kw)2.2Maximum oil pressure of chassis hydraulic system (MPa)20Working state reference dimension (mm)13055x6500x33900Fuselage thickness (mm)500Center distance of guide rail (mm)600Outrigger foot plate diameter (φ) (mm)800Noted: We have different models of auger drilling machines, RDH-260 is listed for reference only. We will recommend the suitable piling machine to you as per different requirements.Auger drilling is a method for installing auger piles and is usually done for drilling in minor depths through loose rock. Installing the piles via auger drilling helps in balancing the load of a construction in deeper soil layers. Auger drilling is largely free from vibration and noise, which is why the technique can also be used in urban areas. This is one advantage drilling augers have over methods such as drive drilling.  Auger drilling does not require large tubes, which is why both the preparation and the actual process are fairly uncomplicated. The drilling auger - which is hollow from the inside - is screwed in the ground and the drilling is initiated. Upon reaching the target depth concrete is pumped through the bore hole. Ultimately, this presses the drilling auger back up. If something other than steel fiber concrete is used, the starter bars need to be vibrated into the concrete. If the drill depth needs to be altered during the drilling process, this can be adjusted at any point.√ Continuous Flight Augering (CFA)√ Telescopic Vertical Auger Drilling√ Horizontal Auger Drilling√ Vertical Auger DrillingII. Photos        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
