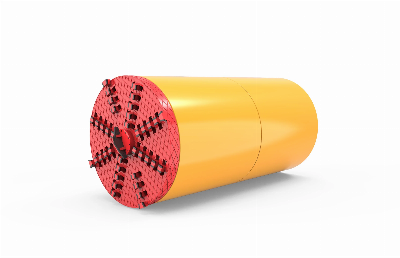

Npd1200 Slurry Balance Pipe Jacking Machine

Product Description1. This NPD1200 slurry balance pipe jacking machine is driven by two 22KW motor or hydraulic motor.2. The pipe jacking machine has a compact structure and adopts reverse jacking equipment. The pipe jacking machine is suitable for jacking in hard soil, soft soil, and sandy soil layers. Product Parameters  Pipe jacking diameter mmΦ1200Outer diameter of pipe jacking machine × length mmφ1460×3400Cutting cutter headMotor2*22kwMaximum torque kN.m110Installed capacity46.2kwDeviation correction systemNumber of cylinders4Cylinder thrust T50Correction angle2.5Motor power Kw2.2Slurry feeding and discharging systempipe diameter mmφ100Jacking speed mm/min                       0~200Control modePLC centralized control outside the machine (can be displayed or operated by touching the membrane screen, and intercom inside andoutside the machine)Head weight (ton)12 Company Profile      Yangzhou Dilong Machinery Co., Ltd. is a high-tech enterprise that integrates the design, manufacturing, sales, and service of various types of trenchless equipment.      Guided by construction method innovation and intelligent construction, supported by design innovation, manufacturing innovation and management innovation, the company has independently developed pipe jacking machine, shield machine, shield jacking machine, hard rock tunneling machine (TBM), profiled section tunneling machine and other series of products.      The pipe jacking machine mainly includes mud water balance pipe jacking machines, soil pressure balance pipe jacking machines, rock pipe jacking machines, rectangular pipe jacking machines, relay rooms, and various types of pipe jacking supporting equipment between 800-5000mm.      The shield machine mainly consists of a complete set of equipment ranging from 2600-6000mm, including top shield machines, slurry balance shield machines, and earth pressure balance shield machines.      Since its establishment, the company has aimed to achieve the goal of "excellent quality, first-class brand, crossing the globe, and building a world-class non excavation production base". It has extensively absorbed advanced technology from both domestic and foreign countries, constantly keeping up with the times, innovating and improving. Its professional equipment has reached a leading level in the industry, and has won the recognition and trust of users with excellent product quality, timely delivery time, and thoughtful service. The products are sold to multiple countries in Southeast Asia, the Middle East, and Africa, and enjoy a good reputation in the industry.CertificationsFAQIn order for you to get a better price and technical solutions. Please provide the following required parameters: 1. Project total length, distance for one section, how many sections will be built? 2. Pipe type: concrete or steel etc, pipe drawings3. Projects information: for water supply, sewage project? 4. Geological report /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
