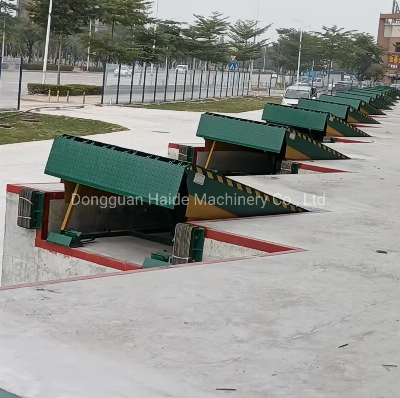

CE-Approved 10ton/15ton/20ton 6′ X8′ Hydraulic Dock Leveler /Loading Bay

CE-Dock Leveler Equipment Specification(W*L*H): 1830mm*1830mm*490mm Pit Dimension(W*L*H): 1870mm*1680mm*500mm Dynamic Capacity: 10 ton Adjust range: +300mm/-300mm Main deck thickness: 8mm Lip board thickness: 16mm Power pack: : Italy "Hydr-APP" 0.75 KW 340~415V 3P 50Hz Oil seal: Japan"NOK" Color: Main body Red+Safety Black&Orange Color: Optional Warranty: 365 days after installation for all, 5 years warranty for the steel structure. CE No.: DGS12082902 We can manufacture the dock ramp with capacity 10ton up to 25ton. We can manufacture it as per your any requirements. The 3-fragment full range toe-guard can prevent the operator from entering into the dock leveler by accident and prevent any damage and casualty to the operator. Operation process: Push "UP" button, platform begin to rise. When it rise to highest point, push "EXTEND" button, lip extend out. Then press "DOWN" button, platform and lip lower down to rest on the truck box bed. When loading&unloading is over, then press "UP" botton, platform and lip begin to rise. When platform and lip get away from the truck box bed, then press "RETRACTION" button, lip retract. The push "DOWN" button, then dock leveler restore to original stored position. Two laminated rubber bumper with woven fiber inside can withstand any shock between the truck and dock. Meets all possible user demand and comply with rules and regulations of European EN1398 standards. ModelEquipment Specification(W*L*H)mmPit Dimension(W*L*H)mmCapacityAdjust rangeLip board(W*L*T)6*61830*1830*4901870*1680*50010~25T10T is standard+300mm/-300mm1830*400*156.5*61980*1830*4902020*1680*5001980*400*157*62130*1830*4902170*1680*5002130*400*156*81830*2440*490(590)1870*2280*500(600)1830*400*156.5*81980*2440*490(590)2020*2280*500(600)1980*400*157*82130*2440*490(590)2170*2280*500(600)2130*400*156*101830*3050*490(590)1870*2880*500(600)+400mm/-300mmIf the height is 590mm:+450mm/-350mm1830*400*156.5*101980*3050*490(590)2020*2880*500(600)1980*400*157*102130*3050*490(590)2170*2880*500(600)2130*400*15  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
