400 Liter SS316L Mixing Homogenizing Tank Cosmetic Mixing Equipment

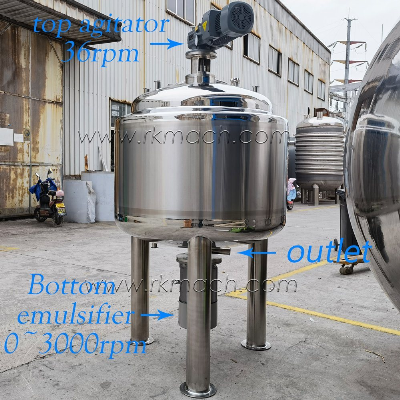

400 Liter SS316L mixing homogenizing tank cosmetic mixing equipmentFood grade homogenizer for jelly ace product. CMC, ink, painting, chemical fertilizer mixing equipmentApplication: For the mixing, homogenizing, and heating / cooling of chemical gel and creamStainless steel mixing tank structureSanitary design with sealed top and dish bottom.With bottom mount homogenizer / emulsifying mixer, drainage port on the center of the homogenizer / homogenizerWater jacketed for both hot and cold-water circulationTop mount agitator for low speed gently mixingA high-performance thermal insulation wall out side the jacket to protect the operator from got hurt by the low / high temperature Mechanical seal and stainless-steel mechanical seal base to keep external water enter into the tankStainless steel agitator transmission frame to improve the stability of the mixingProduct sketch Technical parameters of 400Liter stainless stell homogenizing mixing tank 1AB2Main partsSpecification3Full capacity550 Liter4Working capacity400Liter5Top  Dish head with manway cover6Bottom Dish end with bottom homogenizer mounted vertically7Design pressureRoom pressure insideMax 3 bar in water jacket8Inner wallMaterial Stainless steel 316L9Temp.-20~150 degree Celsius 10Size φ900 x 60011Thickness 4mm12Polish Mirror polish13MotorPower 1.5kw14 voltage380V 50Hz 3phase15Agitator Type Anchor, with PTFE scrapers for bottom and side wall16Speed 36rpm17Jacket For for external hot / cold water18Temp. -20~150 degree Celsius 19Material Stainless 30420TypeSpiral coil21InsulationMaterial PU foam22Thickness 50mm23Outer shellmaterialSS30424Thickness 1.5mm25Ports On topBreath hole x 1 Nos26CIP cleaning port x 1 Nos27Feed port x 1 Nos28Spare port x 1 Nos29Oval manway x 1 Nos30On jacketWater inlet x 1 Nos31Water outlet x 1 Nos32On bottomDrainage port x 1 Nos33Thermal well x 1 Nos34Overall sizemm1100x1100x2200 mmMixing tank product imagestainless steel control box with variale speed controller / inner view of the bottom homogenizer Anchor type mixer / frame mixer with PTFE scrapers for tank bottom and size wall / frequency converterDrainage port on the bottom homogenizer.All product will flow out from the homogenizing head rotor and stator assemble.Space from the lower point of motor to floor is about 200mm to keep the motor away from the floor and easy to remove the motor when necessary.the price for stainless steel mixing tank may change time to time. Please talk to our online team to get the latest price. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
