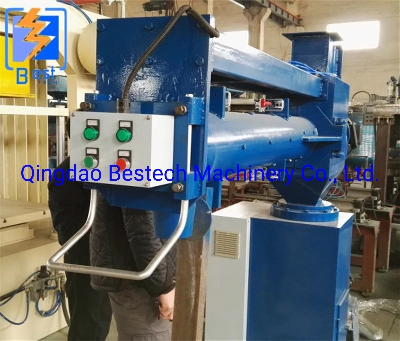

Resin Sand Mixer Machine / Foundry Sand Mixer/ Sand Mixing Equipment

Company Information:QINGDO BESTECH MACHINERY CO.,LTD own the strong development real strength, the forerunner's production craft, perfect examination means, the management system of science. The conduct and actions casts the professional production factory house, technique, quantity and the automation level etc. of the machine profession to all be placed in the domestic to go together the advanced level of industry.S24series single arm sand mixer   The mixing arm has a frame structure supporting two half shells, which form the mixing tube. These are split length-ways and are hinged at a single point behind the sand inlet. This opening arrangement gives easy access to the mixing shaft and blades for maintenance and cleaning. The mixing tube may be fitted with are movable wear lining (optional). It has a mixer shaft with removable/interchangeable forged steel blades with tungsten carbide plates on every wear face.ModelS245S2410S2415S2420Productivity (t/h)5101520Diameter (mm)Φ203Φ219Φ225Φ250 Rotation rate (r/min)960970 720730 Motor power (kw)47.51115 Gyration radius (mm)R2000R2000R2000R2000Binder quantitative accuracy
