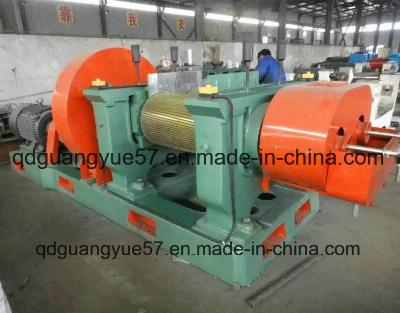

Professional Rubber Cracker / Waste Tyre Recycling Rubber Crusher Mill Xkp560

Professional Rubber Cracker / Waste Tyre Recycling Rubber Crusher Mill XKP560A1: Brief: 1. The shredding chamber is closely mated with the left-hand drive. 2. The shredding chamber is a combined structure and the cutter shaft adopts rolling bearings, which is convenient for both installation and maintenance. 3. The cylinder sieve will repeatedly send those unqualified chips or shivers back to the shredding chamber, while whose qualified ones will be let out of the sieve. 4. The transmission system adopts a NGW planetary hardened-gear speed reducer, which is compactly structured with features of lower noise, higher efficiency and longer service life. 5. The configuration of the shredder is structurally compact and practically collocated.A2:Parameters of the Rubber cracker machine:Parameters/versionXKP-400XKP-450XKP-560Front roll diameter 400 450 560Back roll diameter 400 450 510Roll length600650800Front roll surface speed (m/min)17.3223.225.56Friction ratio1:1.381:1.381:1.30Max. nip 88 8Feeding capacity per (kg) 200-300 600-800 1500Power(kw)45 6075Size(l*w*h)3950*1800*17804770*1846*18355064*2284*1978Weight(kg)70001200019000Our certification:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
