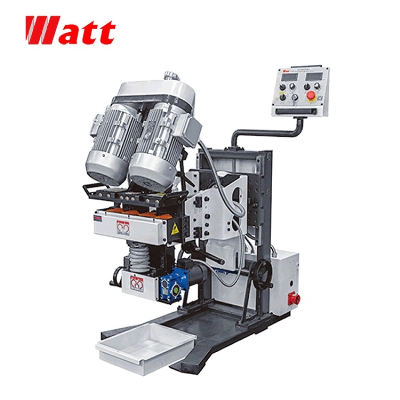

Automatic Plate Chamfering Beveling Machine SKF-840

OVERVIEWSKF-840 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. For small size plate, machine fixed, plate feed and process automatically; For large size plate, plate fixed, machine along the edge of the plate process automatically. The machine can be suspended process without a base when the working height is not standard, This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.NameAutomatic plate beveling machineModelSKF-840BrandWATTUsePlate beveling,chamferingOEMAcceptableCustomizeAcceptableMOQ1 unitPackingWooden caseDimension130*84*145 cmGross weigh380kgLead time7daysPort of landingNingbo or ShanghaiFEATURES1.Beveling shape: V, Y,K,X2.Beveling angle: 0° -±60°3.Surface roughness: Ra3.2-Ra6.34.Cold cutting, don't change the material of plate.5.The cutter head can be turned over 180°,easy to bevel plate double side6.Suitable for carbon steel, stainless steel, alloy steel, Cast iron, hard plastic, etc. SPECIFICATIONElectric supplyAC 380V 50HZ 3PTotal power6.52KWSpindle rotation500-1400rpmFeeding speed0-1500mm/minClamping Thickness6-80mmClamping width ≥80mmBeveling angle0°-±60°Plate Length≥300mmBeveling width0-70mmSingle bevel width0-20mmCutter diameter Ø80mmInsert Qty.6pcsWorking height800-810mmTravel space1200*800mmDimension130*84*145cmGross Weight380KGAbove parameters just for reference only, not acceptance criteriaPOWER SUPPLIESElectric: AC 3800V 50HZ 3P      Power:6.52KWAPPLICATIONFAQQ:Do you have manual or operation video for us to know more about the machine? A:Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing . Q:How can I trust you for the first time business ?A:Please note our above business license and certificate. And if you don't trust us, then we can use MIC trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.Q:Is engineer available to serve oversea?A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.Q:How can we make sure about the machine quality after we put the order?A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.Q:Will you provides the door to door service?A:Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
