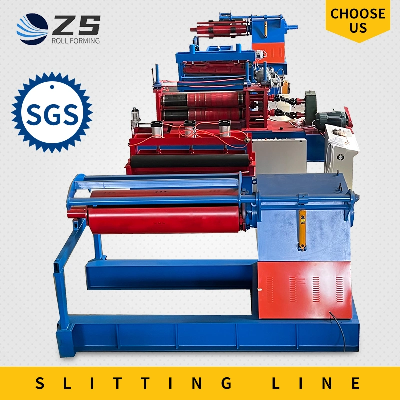

Automatic Metal Slitting Machine Steel Coil Slitting Line Slit to Length Line

Automatic High Speed Slitting Line  Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,   cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate,cooper plate etc. No.Item Spec.Details1Hydraulic DecoilerCapacity of un-coiler10TWidth of steel coil1500MMInner diameter of steel coil508-630mm Outer diameter of steel coil1500MMMaterial of main shaft 40CrDecoiler motor7.5KWHydraulic motor power4kw2 Flattening -slittingCoil materialGalvanized sheet, PPGI, GIThickness of material0.3-3.0mmWidth of material1250-1500mmSlitting speed10-50m/minSlitting width tolerance±0.1mmDiameter of shaft200mmMinimum width20mmPower of slitting30kwMaterial of blade6CrW2Si3Hydraulic RecoilerActive re-coileractive to recoilingCapacity of un-coiler10TWidth of steel coil1250-1500mmInner diameter of steel coil508-610mmOuter diameter of steel coil1500mmMaterial of main shaft40CrRecoiler motoe power30kwHydraulic motor power4kwSlitting Line Layout :Detailed Photos10 tons Hydraulic decoiler with car Active un-coiler: active to uncoiling.Capacity of un-coiler: 10 tonsWidth of steel coil: 1250mmInner diameter of steel coil: 508-610mmOuter diameter of steel coil: φ1300mmMaterial of main shaft: 40CrDecoiler motor:5.5kwHydraulic motor power: 4kwUncoiling speed: 10-30m/min Flattening -slittingoil material: Galvanized sheet, PPGI, GIThickness of material: 0.3-3.0mm;Width of material:1250mm;Slitting speed:10-30m/min;Slitting width tolerance: ±0.1mmWork pressure of hydraulic system: 12Mpa;Diameter of shaft:200mmMinimum width:20mmPower of slitting:22kw  Tension unit & Scrap Winding:This system can stamping strip steel afer slitting and feeder them into the decoiler.  10 tons with car hydraulic recoiler with pressing armActive re-coiler: active to recoiling.Capacity of un-coiler:10tonsWidth of steel coil: 1250mmInner diameter of steel coil: 508-610mm;Outer diameter of steel coil: φ1300mmMaterial of main shaft: 40CrRecoiler motoe power:15kwHydraulic motor power: 4kwPneumatic damp pressing armRecoiling speed: 10-30m/minOur advantages           /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
