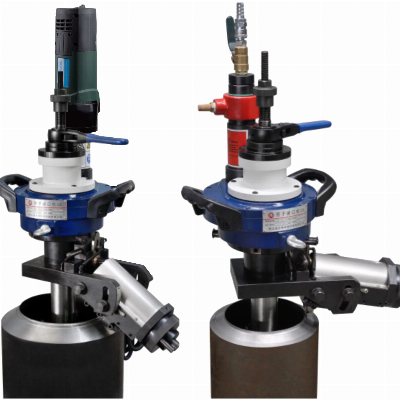

Tube Beveling Chamfering Machine Portable Pipe Beveller

Tube Beveling Chamfering  Machine Portable Pipe BevellerProduction DescriptionTube Beveling Chamfering  Machine Portable Pipe BevellerThe Tube Beveling Chamfering  Machine Portable Pipe Beveller utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.  Features:On-site cold Beveling improves safety    Easy set-up & OperationSelf-Centering    Can be positioned in any direction              Feed ratchet spanner makes tool feed / back easilyLight weight and compact designSpcification:ModelWorking Range (ID-OD)Wall ThicknessRotation SpeedISE-30Φ18-301/2''-3/4''≤1550r/minISE-80Φ28-891''-3''≤1555r/minISE-120Φ40-12011/4''-4''≤1530r/minISE-159Φ65-15921/2''-5''≤2035r/minISE-252-1Φ80-2733''-10''≤2016r/minISE-252-2≤7516r/minISE-352-1Φ150-3566''-14''≤2014r/minISE-352-2≤7514r/minISE-426-1Φ273-42610''-16''≤2012r/minISE-426-2≤7512r/minISE-630-1Φ300-63012''-24''≤2010r/minISE-630-2≤7510r/minISE-850-1Φ490-85024''-34''≤209r/minISE-850-2≤759r/min ModelISE-80Working Range(mm)ID28-76OD32-89The Input Electrical Power(W)1500voltage(V)220frequency (HZ)50Rotating cutter head speed(r/min)50Feed range(mm)15Net Weight10kgsProduct Show                     METABO motor                                             Electric Motor                                       Pneumatic MotorThe standard accessories Detail Pictures    Order Guide Choose the right ModelConfirm your electric power supply ( Voltage, frequency and phase)Confirm the beveling angel requiredConfirm the welding joint required (U, V, Double V or Compound preparation)Advise your pipe material ( Carbon steel, stainless steel or others)Other special demands about machineThe spare parts neededIf the pipe wall thickness more than 30mm, inform us in advance (Important)Company Show   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
