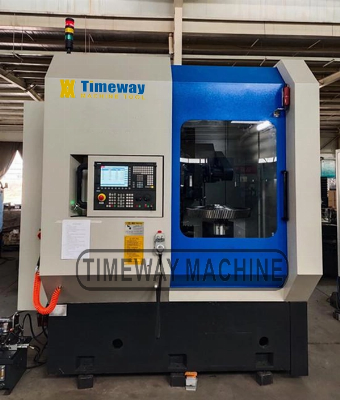

CNC Gear Deburring Machine Chamfering MachineIntroduction to the overall structure of the machine * The machine adopts vertical, single-column and double-chamfering head design, fully enclosed cover, compact structure and easy operation;* Siemens 808D CNC system control, CNC programming interpolation processing principle, can perform full tooth profile chamfering processing on the two end faces of various disk gears at the same time;* When the involute gear product is processed for the first time, it is only necessary to input the gear profile parameters on the CNC system interface to automatically generate the processing program, and the human-machine interface of the CNC system can perform processing fine-tuning; in the second processing, in addition to changing the tooling, just call out the program. the machine tool will no longer be adjusted; if the tooling is universal, it can realize quick production change in one minute, especially suitable for multi-variety small batch and large batch production. * The machine has a total of 7 axes, 5 servo axes and 2 frequency modulation control tool chamfering spindles. Such as:1. Chamfering electric spindle (frequency modulation control): 22. Chamfering Spindle Column Horizontal Drive Axis: X1, X2 Axis (Servo Drive): 23. Two chamfered columns Up and down drive axes: Y1, Y2 axes (servo drive): 24. Table rotation axis: B axis (servo drive): 1Technical parameterModelGDYK-500Workpiece diameter: root circle of cylindrical external gearФ30~Ф500mm (diameter less than Ф50, single-sided processing)Maximum helix angle of workpiece (β):28ºProcessing gear module1.5~16mmMaximum workpiece weight300kgMaximum axial height of workpiece300mmMaximum speed of worktable10rpmTool speed2000~12000rpmChamfer width0.2~2mmMachine tool shape length × width × height1860×2100×2150mmMachine net weightabout 7000kgtotal machine power≤15KwWorking temperature-5~40°CAir source requirementsAir pressure 0.4~0.6MPaCNC systemSiemens 808DOur Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field. Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
