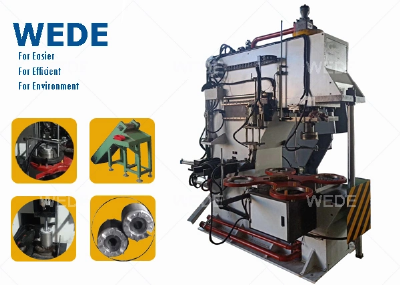

Top Quality Four Stations Die Casting Machine for Aluminum Rotor

Pressure die casting machine :---vertical model for the rotor---4 rotary stations running. Rotor casting machine:---equipped with servo system,main driven by big power, and the divider also servo motor connecting with reducer. aluminum rotor injection machine:---can be semi-auto (auto casting, auto divider, auto lubrication, auto unloading)---can be selected to equip with aluminum filling robot---can be selected to equip with auto loading, and transfer to next station by conveyor---can be selected to equip with aluminum remnants return conveyor---can do casting for the loose lamination core by the dummy shaft manual assembly and auto dummy shaft draw back device. ---can be selected to equip with environment protective shield. So that fully auto running rotor die casting machine Pressure aluminum filling machine for the rotorTons range:32Ton50Ton63Ton80Ton100Ton125Ton63Ton technical parameterNominal close force:630KNMax injection stroke:120mm (combined with diameter)Max injection force:200KNMax injection diameter:90mm(combined with stroke)Max close stroke:400mmMax aluminum filling weight: 2kgsMin casting thickness: 30mmNo loading cycle time:18S(excluding the manual loading timeDistance between movable board and working bench:230-630mm   Structure I. Machine frame and beam (a.)Frame takes weld structure, main boards etc are welded of steel sheet and accepts stress relief treatment.Machine surface is sandblasted and painted. (b.)The Piston Guide Sleeve, the supporting guide ring are inlaid with phosphor copper and lubricated with lubricating oil. The guiding pillar adopts the special guiding pillar guiding support.II. Machine is numerical control system and has 4 rotary stations. The control precision is high, the protection is comprehensive; the structure is simple for easy operation. Rotary stations are driven by XINJIE servo motor and indexing by precise RV reducer, which achieves higher anti-load capability than the traditional divider and keep high precision running for longer time. Servo system achieves obvious energy saving. (servo motor divider)The operation is simple and fast, the die is fixed by snap spring, which ensures fast die change-over and furthermoreupgrade the production efficiency. (a.)Integral fixed hydraulic station is applied. (b.)Hydraulic Station Adopts Open Control System, main cylinder has two-speed function, other cylinder adopts flow control, pressure is proportional to system pressure, which can save energy and improve production efficiency.(c.) System operating pressure < 20MPA.(d.)Solenoid directional valve takes high quality brand. (e.)The hydraulic oil return system is cooled by circulating cooling water. Cooling Water and piping provided by Customer (f.)Hydraulic station takes servo motor.(g.)The main oil pipe of the equipment is made of seamless steel pipe, and the flexible hydraulic oil pipe is used in the oil pipe of the moving parts.2 rotary staions die casting machine pushing board die casting machine horizontal die casting machinestator winding production line stator varnish machine/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
