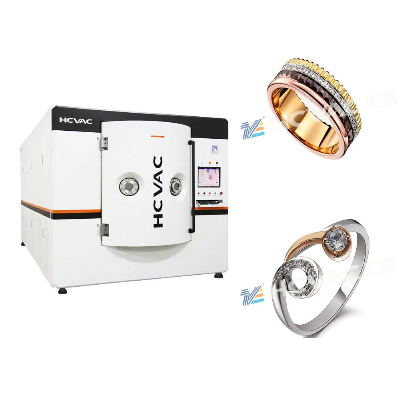

PVD Metal Jewelry Magnetron Sputtering Coating Machine Vacuum Coating Equipment

PVD Magnetron sputtering coating machine vacuum coating equipmentThis machine mainly integrate the technology of arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films. The coating will be good adhesion, scratch-proof.The principle of vacuum electric arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation, ionization material, combine pulsed bias technical to improve the energy and activity of deposited particles, and enhance the properties of coating. It can deposit coatings on the surface of metal as well as non-metal. FeaturesFilms classified with colors:Real gold an real rosegold coatingImitation gold series: TiN, ZrN, TiN+Au, ZrN+AuRose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, CuSilver white series: CrN, CrSiN, Zr (micro N)Grey series: Ti, stainless steel (S.S), (S.S) NCoffee color series: TiCN, TiAlCN, ZrCBlue series: TiO, CrO, TiALNBlack Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC Coating film performance:(1) The coating is uniform, dense, with good adhesion, high hardness and low friction factor.(2) The color does not fade over 2-3 years, which can meet the ROHS environmental standard.(3) High physical property, good abrasion resistance; non-stick dirt on the surface of the coating.(4) Stable performance, perspiration resistance/salt mist/abrasion/bend/RCA are all qualified.Parameters:ModeHCMS-1212HCMS-1912HCMS-1612Dimension1250*1200mm1910*1200mm1600*1200mmTechnologyARC , MS , HiPIMS, AS / AFVacuum chamber  structureVertical single(side) door, pump system postposition, double water-coolingVacuum systemMolecule pump +Roots pump +Mechanical pump(5.0*10-5Pa)Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minuteMeasure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10-5PaControl modeManual/Automatic/PC/PLC + HMI/PC four choice of control modeRemarkWe can design the dimension of the equipment according to customer's special technique requirement.  ApplicationApplied industries: It is widely used in the watchband, watchcase, jewelry, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films. It can get fineness and smooth film, good adhesion. Samplescoating effect!   Company ProfileThe coating experts of your own company: Full set solution for the coating production.Factory Workshop:  Certifications  Packaging & Shipping Clients Our AdvantagesWhy Choose HCVAC system?Over 3000 plants installed worldwideQuick cycle timesHigh production capability with low energy consumptionMore up time due to ease of loading/unloading and low maintenanceHigh productivity with only a single operatorSteel process chambers, built to lastEco-friendlySpace saving designPVD option available on all plants1 year component warranty and 25 years minimum guaranteed working lifeComplete global network of consulting, engineering and renowned after sales service We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers. HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements. We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.ISO 9001 standard to ensure the quality can meet the customer's requirements. Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.  Contact USFor further information, please feel free to contact us:  HCVAC              Official website: dg-huicheng.en.made-in-china.com        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
