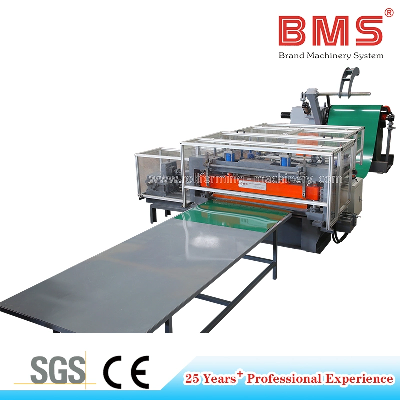

BMS Automatic Steel Coil PPGI/Gi Cut-to-Length Line Making Machine

BMS Automatic Steel Coil PPGI/Gi Cut-to-Length Line Making MachineProduct DescriptionThe Features of the machine1.Automatically forming and cutting at any length with pre-set quantity2.Signal feedback from encoder showing length of product3.The control panel enables to count a total length of finished coil4.Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated5.Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRCMaterialSuitable Material thickness:0.5-2.0mmWidth:400,650,800,1000,1250,1300mmApplicable material:Galvanized Sheet(GI),Pre-painted Galvanized Sheet(PPGI),Cold Roll Steel(CRC),Hot Roll Steel(HRC)With Yield Strength:235-550MpaWork Follow5 ton Hydraulic Decoiler - Feeding Guide - Leveling Device - Slitting Device - Hydraulic Post Cutting - Run Out Table                       Machine componet1) Hydraulic Decoiler:One setHydraulic control steel coil inner bore shrinkage and stopMax Feeding width:1300mm,coil ID range 508mm±30mmCapacity:Max.5 Ton      Straightening and Cut-to-length MachineWith rubber rolling feeding device,body frame made from H450 type steel by weldingSide wall thickness:T18mmShafts manufactured from 45# steel,Diameter=φ105mmWith shearing functionMain machine motor:7.5KW+5.5KWWith PLC control systemWith slitting function(4 slitter,slitting thickness:2mm)Line speed:15-20m/minute               Post Hydraulic Cutting DevicePost to cut, stop to cutting,Two pieces type of cutting blade design, no blankingHydraulic motor:5.5KW ;Cutting tool material:Cr12MoV  PLC Control SystemControl The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.Combined WithPLC, Inverter, Touch Screen, Encoder, etcPLCSiemens (German brand)/Schneider(French brand)InverterSiemens (German brand)/Schneider(French brand)7-Inch Color Touch ScreenSiemens (German brand)/Schneider(French brand)EncoderOmron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC ContactorThermal RelaySiemens(German brand)/Schneider(French brand)Air SwitchLG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24VAfter-Sale Service1. The warranty is 24 months after the client receives the machine.Within The 24months, we will courier the replacement parts to the client free of charge2.We offer technical support for the entire life of our machines3. We can send our technicians to install and train the workers in the clients' factories with extra costTerms Of TradeMinimum order quantity (MOQ)1 SetDelivery timeabout 45 workdaysPort of loadingport of XiamenType of paymentby T/T or by L/CExportto more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand,Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etcPacking StylePacking methodMain body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.View more products,click here...Company Profile  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
