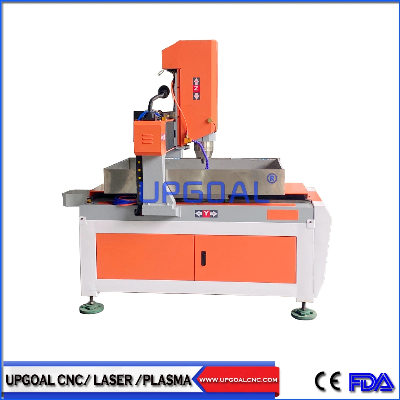

Heavy Duty CNC Router Metal Milling Engraivng Machine 600*900mmFeatures1. Heavy duty cast Iron structure( cast iron machine bed & working table & gantry & Z-axis) with vibration temper aging treatment ensures no deformation for long time.2.Cast iron T slot working table with platform moving type. Durable without deformation enable positioning more precision . 3.Stainless steel water slot cooling system with program control the water spraying, ensuring the cooling for the metal & hard materials.4.Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.5.Three axis with precision TBI ball screw transmission ensure the engraving speed and accuracy.6.High variable speed powerful 5.5kW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.7.Powerful Leadshine hybrid servo motor and driver H2-758 for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working8.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.9. Mach3 control system(WXHC), with USB port for desktop or laptop computer, showing the processing path , more convenient.10. Dust proof design for XY-axis11. With the function of break-point memory ,power failure resuming and automatic home/origin correction function.Effectively ensure long time working precision.12. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection.13..Auto tools calibration, conveineint for working .14. Auto lubrication system, more convenient for machine lubricating. Technical Parameters Effective working area600(X)mm*900(Y)mm*200(Z)mmFeeding height200mmMaterialsHeavy duty cast iron structure for machine bed & working table & gantry & Z-axisWorking tableCast iron T slotMoving typePlatform movingGuide railLinear square guide rail ( Hiwin, Taiwan)TransmissionLead ball screw for XYZ-axis( TBI)Driving modeLeadshine hybrid servo motor and driver (H2-758)Spindle motor5.5kw water cooling(ER25,HQD)Spindle speed18000-24000rpmInverterFulingVoltageAC 220V, 50/60Hz, single phase orAC 380V, 50/60Hz, three phasesTraveling speed8000mm/minEngraving speed6000mm/minMachine accuracy0.02mmControl systemMACH3 control system( WXHC, 3 axis)Suitable softwareArtcam, Type3, Ucancam V9,etcCarving InstructionsG code *Uoo *mmg *plt HPGLRunning environment temperature0-45 ºCRelative humidity30%-75%Cooling systemStainless steel water slot coolingTool calibrationAutoLubrication systemAutoCertificateCEApplicationMould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp. Accessories & Packing Reference Working Videoshttps://youtu.be/EN4Vk4H4dvA?si=Pz03KC6kCYiAdlC6 For more information, just feel free to contact us! Jinan Upgoal Mechanical Equipment Co.,Ltd CNC Router/Laser Engraving Cutting Marking Welding Cleaning Machine/Plasma Cutting Machine/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
