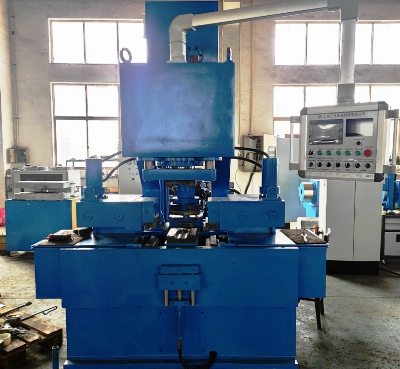

Small R Squeezing and Sizing Machine

 This machine is used to squeeze and calibrate small heated elbow on the same level. A qualified  180°elbow of Φ=76mm thickness=12mm R=1.5D can be squeeze to R=0.5D and achieve technical requirement.Consists of four parts: Hydraulic system:Hydraulic station, oil cylinder, oil tank, oil pipeElectrical control system:Control cabinet, operator panel, proximity switch, medium frequency heaterMechanical system:Machine frame, left and right squeezing die, back die, sizing die, position blockWater cooling system:Water tank, compression engine, refrigeration pump, cooling pumpTemperature measuring system:Infrared temperature sensor, printer  Tube Diameter32 - 76 mm  Tube Thickness3 - 12 mmBend R before SqueezingR ≤ 1.5DBend R after SqueezingR = (0.6 - 1.2)DPump Power18.5 KWElbow heatingSqueezing & Sizing  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
