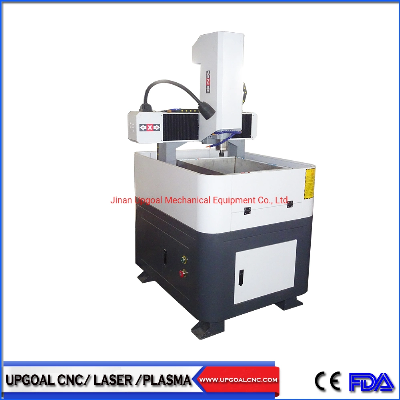

Small 400*400mm Heavy Duty Enclosed Metal CNC Engraving Machine

Small 400*400mm Heavy Duty Enclosed Metal CNC Engraving Machine Features1. Heavy duty cast Iron as a whole with vibration Temper aging treatment ensures no deformation for long time.2.Cast iron Working table with platform moving type. Durable without deformation enable positioning more preciously .3.Equipped with  Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.4.Three axis with precision ball screw transmission ensure the engraving speed and accuracy.5.High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.6.Leadshine hybrid servo motor and driver H2-2206 for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working.7. Optional DSP offline/Mach3/NcStudio controller8.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate. 9.Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.   10. Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.11. auto tool calibration, more convenient for operation.12.Auto lubrication system, more  convenient for machine lubricating.13. With builit-in control cabinet, save space. 14.With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.15.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.16.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.Technical ParametersEffective working area400(X)mm*400Y)mm*200(Z)mmMaterialsHeavy duty whole cast iron structureProtection coverHalf enclosedWorking tableHeavy cast iron T slotMoving typePlatform movingGuide railLinear square guide rail ( Hiwin, Taiwan)TransmissionLead ball screw for XYZ-axisDriving modeChina leadshine hybrid servo motor and driver( H2-758)Spindle motor3.2kw water cooling spindle( HQD, China)Spindle speed0-24000rpmInverterSunfar/FulingVoltageAC 220V± 10%, 50/60Hz, sinle phase orAC 380V± 10%, 50/60Hz, three phasesTraveling speed8000mm/minEngraving speed6000mm/minMachine accuracy0.02mmControl systemDSP offline control system, RichAuto A11ESuitable softwareArtcam, Type3, Ucancam V9,etcCarving InstructionsG code *Uoo *mmg *plt HPGLRunning environment temperature0-45 ºCRelative humidity30%-75%Cooling systemStainless steel water slot cooling systemTool calibrationAutomaticLubrication systemAutomaticCertificateCEApplicationMould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.  Accessories & Packing  Reference Working Videos https://youtu.be/LnHpvIDOoPk  For more information, just feel free to contact us!     Jinan Upgoal Mechanical Equipment Co.,Ltd      CNC Router/Laser Engraving Cutting Marking Welding Cleaning Machine/Plasma Cutting Machine/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
