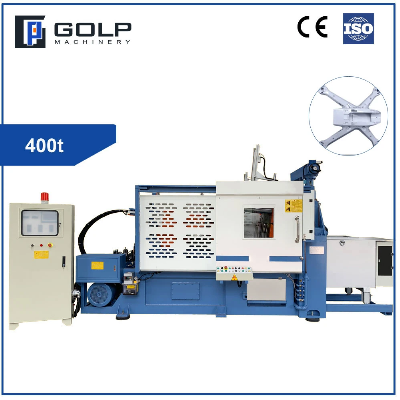

Brass Aluminum Metal Injection Die Casting Machine for Trophy Badge Making

ΔNozzle,nozzle body and gooseneck are heated by electricity.The temperature can be held stable to avoid the defective products;ΔAdopt high quality hydraulic valves ensure hydraulic system stability and excellent performance; ΔHydraulic drive gear type mould height adjustment with convenient operation and accurate adjustment;ΔGood quality electronic burner,burning fully without pollution.Stable performance and high safety ΔAdopts automatic concentrated lubrication system to improve machine service life and decreases repair times. ΔAdopts precise artificial intelligent computer control system,which is convenient for operation and maintenance.ΔDelta computer control system with stable and fast performance,high precision control and easy to operate.ΔThe system is equipped with self diagnosing function and failure alarm function for removal problems.   ITEMUnitDC25T(A)DC25T(B)DC38TDC50TDC68TDC88TClamping ForceKN250250380500680880Clamping Strokemm125150160200230250Ejection ForceKN132344505065Ejection Strokemm405050606060Die Thickness(Min-Max)mm150-220100-300110-270120-330120-330150-350Platen Size(HxV)mm390*368395*417450*420500*480540*490530*577Space Between Tie Bars (W*H)mm278*232260*260295*295335*285335*335357*357Tie  Bar Diametermm404550555563Injection Positionmm000000/-60Injection Strokemm84100105105105130Traverse Strokemm130140180190190190Injection forceKN273163656567Diameter of Plungermm384036/40/4540/45/5045/50/5545/50/55Max Casting ForceBar238246620/500/396517/409/331517/409/331420/340/282Shot WeightKg0.60.80.7/0.85/10.85/1/1.31/1.26/1.551.1/1.3/1.6Max Projecting Areacm²638145/56/7073/93/11597/122/151209/258/312System PressureMpa7810101010.5Motor PowerKW5.57.57.57.57.511Crucible CapacityKg16025025032532555Oil ConsumptionKg/h1.82.53.53.83.84Oil Tank CapacityL150150200200200230Machine WeightTon2.12.42.63.33.43.6Machine Dimensioncm270*100*160270*130*180300*140*180355*145*200355*145*200385*150*200  ITEMUnitDC100TDC130TDC160TDC200TDC280TDC400TClamping ForceKN100013001600200028004000Clamping Strokemm335350350400460520Ejection ForceKN898989110180180Ejection Strokemm858585100100125Die Thickness(Min-Max)mm150-450170-450205-505250-550250-600300-700Platen Size(HxV)mm610*610614*706672*726740*820860*870980*980Space Between Tie Bars (W*H)mm409*409409*409460*460510*510560*560630*630Tie  Bar Diametermm70758090110130Injection Positionmm0/-800/-800/-800/-1000/-1250/-125Injection Strokemm130150150175200230Traverse Strokemm190200200200200340Injection forceKN89108108132158182Diameter of Plungermm45/50/5555/60/6560/65/7060/65/7070/75/8070/80/90Max Casting ForceBar560/453/374455/382/326382/330/286467/397/343410/357/314420/340/282Shot WeightKg1.2/1.4/1.62.3/2.7/3.22.7/3.2/3.73.2/3.7/4.35/5.7/6.54.4/5.7/7.2Max Projecting Areacm²178/220/267285/340/398420/485/560428/503/583683/784/888829/1084/1369System PressureMpa141414141414Motor PowerKW151515152222Crucible CapacityKg3603603603607201350Oil ConsumptionKg/h4.84.84.84.86.311.2Oil Tank CapacityL280300300300500800Machine WeightTon5.866.571118Machine Dimensioncm440*160*205445*160*210450*160*220550*165*220560*170*230690*246*294You can click on the image above for details.WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry.  The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.Q:What's your payment terms?A:T/T,L/C,Paypal,Western Union etc.Q:How long is the product warranty?A: 24 monthsQ: Are you a trading company or a manufacturer?A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.  Q: What kind of product certification do you have?A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.Q: Do you have after sales service?A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.Q: Do you test all your goods before delivery?A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
