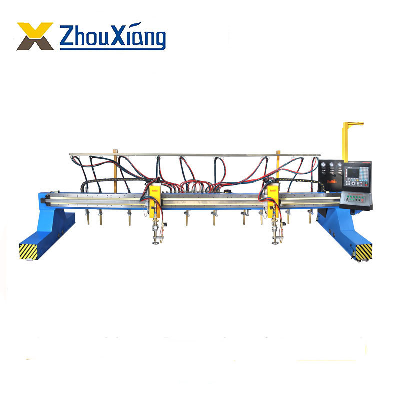

Steel Plate Metal Sheet Multi Head Strip CNC Flame Plasma Cutting Machine

ModelCNC/GDZ-3000CNC/GDZ-4000CNC/GDZ-5000Drive modeSingleSingleDoubleCNC cutting torch222Straight cutting torch99According to user's requestRail Gauge300040005000Effective cutting width (mm)230~2200230~3200230~4200Rail Length (mm)15,000 (valid cutting length 12,500)Cutting depth6~1006~100According to user's requestMaterial of PlateStainless steel, carbon steel or other materialCutting GasOxygen, Propane or acetylene or other cutting gasFree running speed4000mm/minCutting precision±0.5mm/mmRepeatability precision±0.5mm/mmAbove are our standard model, it can be designed and manufactured according to customer's request.1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.  2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way.5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.6. Automatic igniter and height controller of torch can be chosen according to customer's requirement, with convenient operation.7. There's backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.Rcommended Product:Customers of Zhou XiangMain ProductsCompany ProfileWuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries.Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.We have high sincerity to do business with customers all over the world and establish good friendships.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
