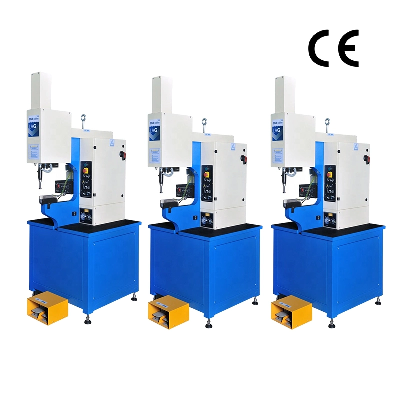

618 Model RAM Force Range Max 54kn Fastener Insertion Machine

Product Feature. High stiffness,structure,high stability,less deformation,less vibration,high accuracy. Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion           process by single operator. Quick press force setting and repeatability ± 1%. Maximum welding speed 35/min . 100% safety system. Ram force range MAX 54 KN. Throat depth 458mm. Energy saving re-design reliability and energy efficiency of a full hydraulic system. Possibility to insert M10 nut with the mild steel Product ParameterMoel416PLUS618PLUS824PLUSForce44KN54KN72KNInsertion capacityM8 nut/M6 standoff/M4 studM10 nut/M8 standoff/M6 studM12 nut/M10 standoff/M8 studThroat Depth406mm450mm610mmThtoat Height340mm381mm421mmStroke Length AdjustableYesYesYesNumbers of Inserts Per Hour(Manually)120012001200Ram Force Repeat Accurancy±1%±1%±1%Satety DeviceYesYesYesManual Turret Insertion System(Optional)YesYesYesAutomatic Feeding System(Optional)NoYesYesClinching Joint System(Optional)YesYesYesDwell timeNoStandardStandardPositive stopNoOptionalStandardBatch Counter(Optional)NoYesYesMain power1.5kw2.2kw3.75KWTank Capacity38L38L76LPower Supply220V/1Phase/50HZ380V/3Phase/50HZ380V/3Phase/50HZDimension(W*D*H)mm740*840*1650800*810*21001025*960*2500Net Weight(Kg)335610950Main Options1,How to choose BTM tooling?Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.2,What is the function of Forward Limited?Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.3,How to choose Automatic tooling system?For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to makethe testing.4,Is it Automatic tooling system stable?Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variablefrequency Piezoelectric vibration feeder controller.FAQ1,What size of nuts could fastener insertion 416/618/824 machine could press?For the nuts/standoff/stud,we can make the press M3-M12.2,If we have bought the manual fastener insertion, could we update to automatic machine easily?Absolutely yes.3,What is the difference between hydraulic fastener insertion machine and RSM fastener insertion machine?Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relativelypneumatic drive.4,What is the Manual tooling package made of? And What is the function of the Manual tooling package?33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertionapplication for small parts flange die holder and Manual J frame.5,What is the main function of the fastener insertion machine?Fastener insertion machine with the technology to provide strong, reusable and permanent the threads and mounting points in thinsheet metal.6,What quick-wear part does Fastener insertion machine has?Fuse, safety switch, relay, oil filter, die holder handle.Notice:This picture demonstrates the anti-pressure hand function of the machine refers to the special security mode of processing,only for reference, prohibited imitation     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
